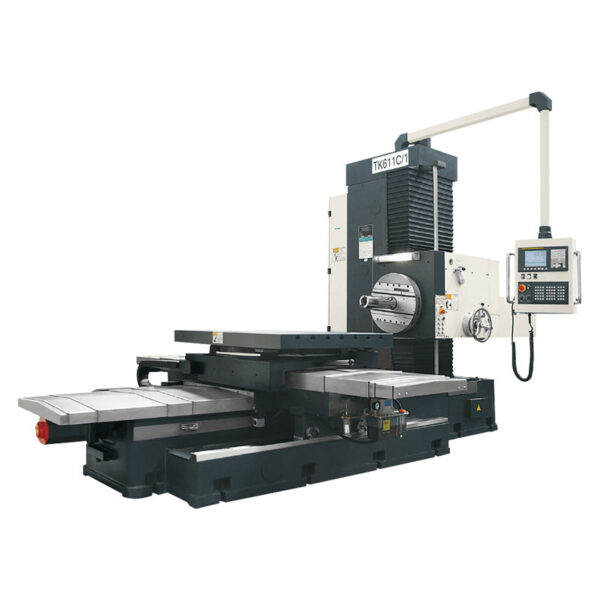

WMT CNC TK611C/1 铣镗床

W Travel: 550 mm

Worktable Travel: Manual type (± 360°  CNC control)

Spindle center line to table: 5-905 mm (835 mm)

T slot (N*W*D): 7*22mm*125mm

Table loading: 5T

CNC controller: SIEMENS 828D or FANUC Ol MD

Axes quantity: X/Y/Z (X/Y/Z/B)

Spindle taper: BT50 (P50T-1)

Spindle speed: 12-1100rpm

Main motor power& torque: F:11/15Kw (1100Nm) S:12/16Kw (1100Nm)

Max.boring/drilling dia.: 240m m/50mm

Max.axial feeding force on spindle: 13000 Nm

X/Y/Z Rapid traverse: 5000m m/m in

X/Y/Z Feeding speed: 5-1000mm/min

W Feeding speed: 0.5-1000mm/min (Normal)

W Rapid traverse: 2060mm/min (Normal)

Radial stroke of facing head tool holder: 160mm

Facing head speed: 4-125rpm

Max. machining dia. of facing head tool holder: φ630mm

Max. permitted torque of facing head: 1100 Nm

Feeding speed of facing head: 0.2-330mm/min

Rapid traverse of facing head tool holder: 1370mm/min

X/Y/Z Positioning accuracy: 0.03/0.03/0.03mm

Repeated accuracyX/Y/Z/W (GB/T17421.2-2000): 0.015/0.015/0.015/—mm

Machine size(L*W*H): 5.3 x 3.1 x2.9m

Weight: 13T
