Wöhler HF 550 木头水分仪

General technical data

- Connections:  Wöhler Hammer Probe, Lance Probe, Wöhler FW 550 Moisture Scale, Temperature Probe, USB-data transfer

- Power supply: Lithium-ion battery 3.6V, 2,250 mAh, charging via USB

- Working time: ca. 20 h (depending on the operating mode and the Display Backlight)

- Storage Temperature: -20°C to +50°C

- Operating temperature: +5°C to +40 °C

- Weight 255 g (without probe)

- Size 59 x 38 x 200 mm

Moisture measurement of firewood logs

- Display: Wood moisture u displayed in % relative to the dry mass of fuel; user can switch to water content w displayed in % relative to the moist mass of fuel

- Wood species: 14 wood species to choose from

- Temperature compensation: - Measures temperature of material by means of a temperature probe

- Measurement principle: Electrical resistance measurement

- Range Moisture: 10.0 % u - 40.0 % u, resolution 0.1 % u; Water content: 9.0 % w - 29.0 % w, resolution 0.1 % w

- Accuracy ± 40 % of reading according to VDI 4206 page 4

Moisture Measurement of bulk material

- Display:  Wood moisture u displayed in % relative to the dry mass of fuel; user can switch to water content w displayed in % relative to the moist mass of fuel

The readings are displayed on the HF 550 screen or on the PC screen

- Bulk material:  Selectable: wood chips and pellets, as well as six species of grain

- Measurement principle: Dielectric mass measurement

- Range Moisture: 0.1 % u to 70.0 % u, resolution 0.1 % u; Water content: 0.1 % w to 41.0 % w, resolution 0.1 % w

- Accuracy: 0.1 % u to 5.0 % u, if 2 % u; ±40 % of reading in the range 5,0 % u to 70,0 % u; For fuels tested according to the requirements of VDI 4206 Part 4

Scope of delivery:

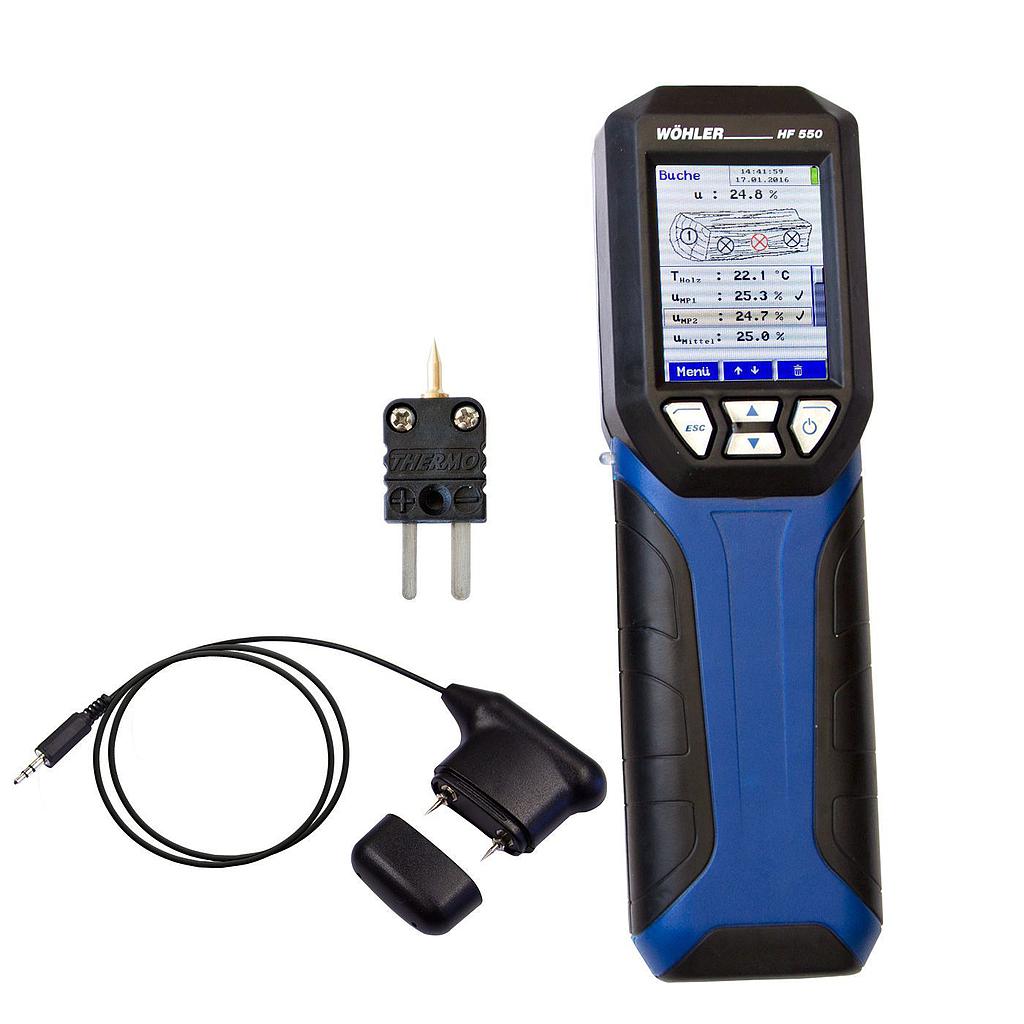

- Wöhler HF 550 Wood Moisture Meter (EN)

- Temperature Probe HF 550

- Wood Moisture Lance Probe

- USB Power Supply

- Bag Wöhler HF 550
