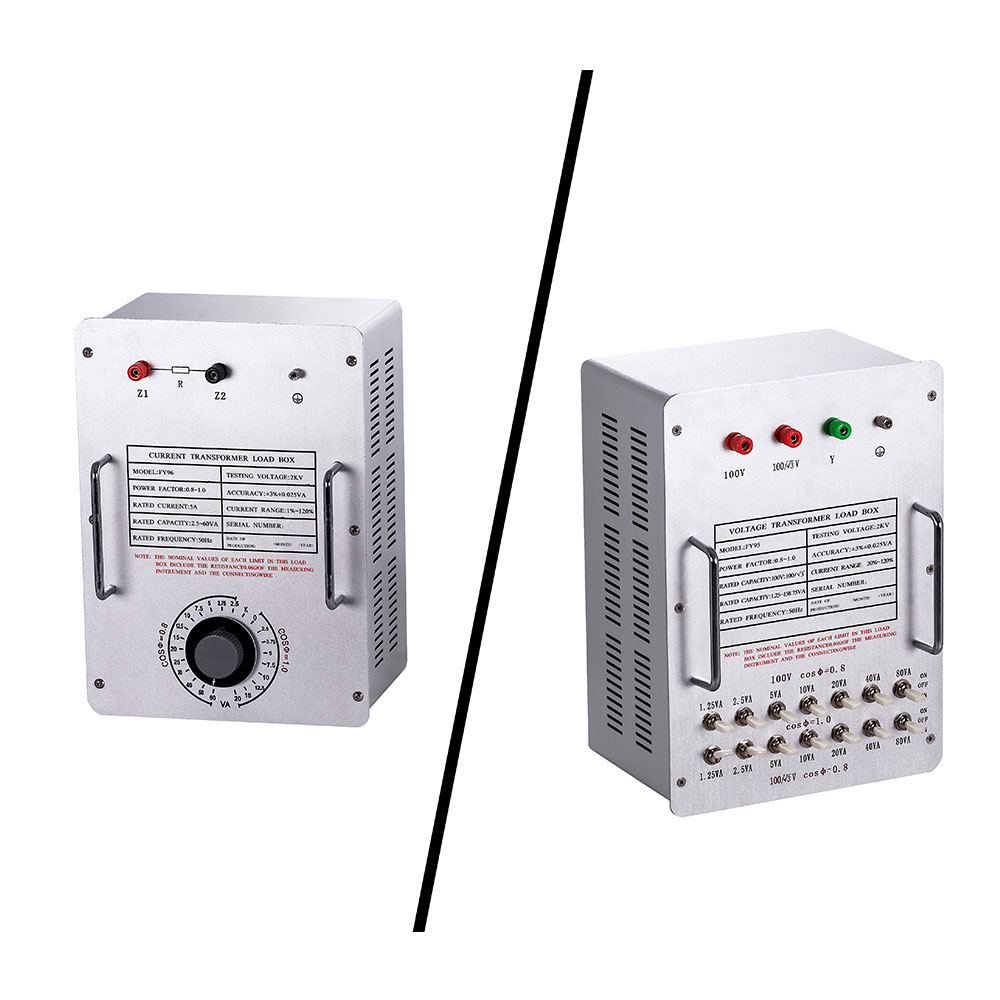

Wuhan FY95-H voltage transformer load box

  • 制造商: Wuhan
    Model: FY95-H
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Wuhan
Model: FY95-H
Warranty: 12 months

- Condition of circumstance
+ Temperature:15~25℃; Humidity:<80%(25℃)
+ Altitude:<1500m; frequency:50Hz
+ Rated capacity:1.25VA~158.75VA
+ Measurement range: 20%~120%
+ Secondary voltage: 100/
+ Power factor: 0.8, 1.0
+ Accuracy: ±3%±0.05VA
+ Test voltage: 2kV
+ Dimension: 250×350×175mm3
+ Weight: 8kg
- Rated capacity
+ current: COS0.8:2.5VA~60VA; COS1.0: 2.5~5VA
+ Voltage:1.25VA~158.75VA
- Measurement range
+ Current:1%~120%; Voltage:20%~120%
+ Secondary current: 5A
+ Secondary voltage: 100/ V
+ Power factor: 0.8, 1.0
- Accuracy
+ Current:±3%±0.0025VA
+ Voltage:±3%±0.05VA
- Test voltage: 2kV
- Dimension: 340×350×175mm3
- Weight: 15kg
