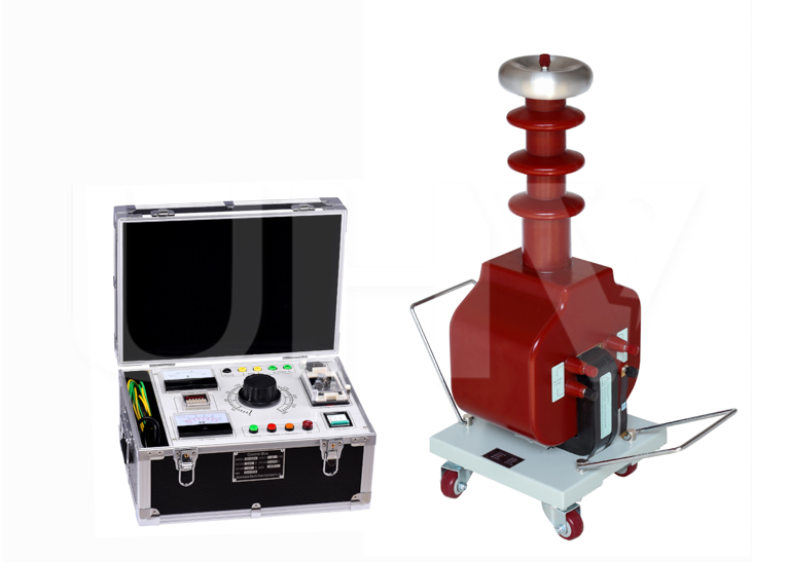

Wuhan GTBZ-5/100 + XC-5/220 交流/直流Hipot测试装置(干式) (5kVA, 100kV AC/140kV DC)

GTBZ-5/100 test set:

Impedance voltage: ≤12%

Output voltage waveform: DC, AC (rotation

sine dimension)

Surface temperature rise: <55 °C

No-load current: <4%

Output current:

AC: 0 - 50mA

DC: 0 - 38mA

Input voltage from Control Box: 200V

Test output voltage: AC 100KV, DC 140KV

Capacity: 5kVA

Weight: 60 Kg

Dimensions (mm): 360x350x1000

Control box XC-5/220:

Power voltage: 220V AC (1 phase), 50Hz

Output: 0-220V, 25A

Temperature: 0~40℃

Altitude: < 2000m

Relative humidity: < 85%

Operating mode: Manual

Weight: 18 Kg
