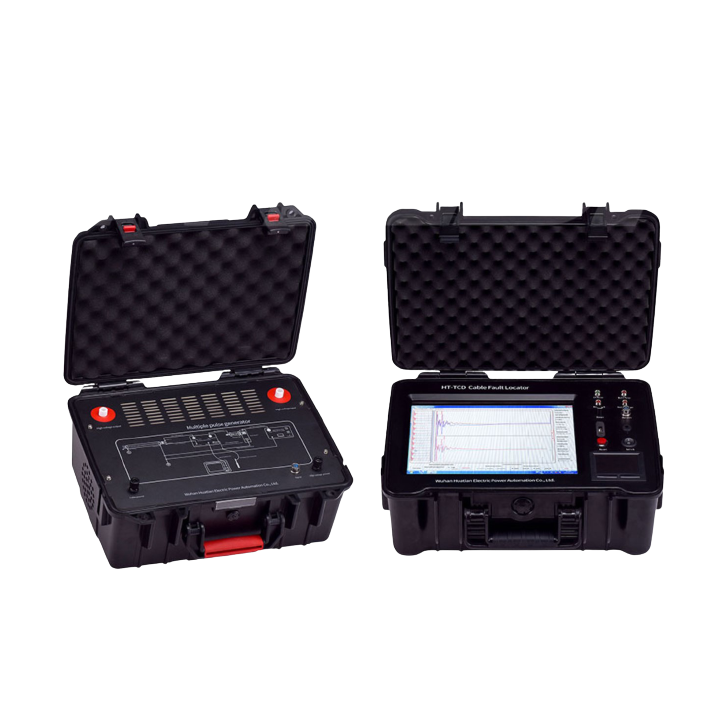

Wuhan HT-TCD 电缆故障探测仪 (≥60km)

Display mode: Industrial LCD touch screen (XP operating platform)

Storage: Fixed 8g

The test distance: ≥60km

Shortest test distance (blind area): 0-5m or no blind spots

Precise point error: ±0.2m

Test error: The systematic error is less than ±1%

Multiple pulse generator: Impulse voltage ≤40kV

Instrument sampling frequency: 6.25MHz, 12.5MHz, 25MHz, 50MHz, 100MHz

Power and power consumption: AC220V±10%; Not more than 15W; DC12V (7AH); No more than 20W

Standby time: It can be used continuously for about 6 hours

The host weight: 6.2kg

The environment temperature: -10℃~40℃

Overall dimensions: 180mm×300mm×400mm

The temperature: -20℃~+40℃

Relative humidity: ≤80%
