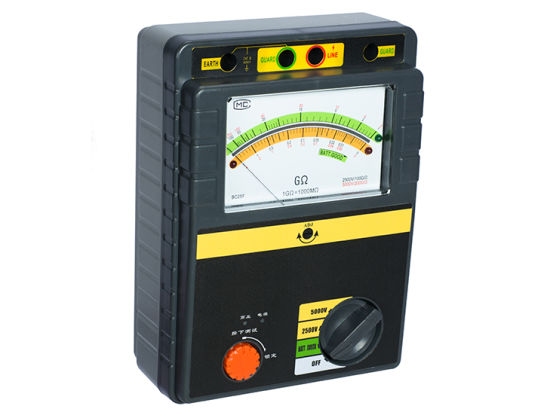

Wuhan HT2550 指针式绝缘电阻测试仪

  • 制造商: Wuhan
    Model: HT2550
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Wuhan
Model: HT2550
Warranty: 12 months

Accuracy
- Output voltage 2500V DC
+ Temperature: 23℃±5℃
+ Insulation resistance: 5MΩ~100GΩ ±5%
+ Output voltage: 20MΩ~100GΩ, 0~+10%
- Output voltage 5000V DC
+ Temperature: 23℃±5℃
+ Insulation resistance: 10MΩ~200GΩ ±5%
+ Output voltage: 40MΩ~200GΩ, 0~+10%
HV short-circuit current: ≥1mA
Power supply: 8 AA batteries
Work environment: Temperature: -10℃~40℃
Relative humidity: ≤85 %
Storage environment: Temperature: -20℃~60℃
Relative humidity: ≤90 %
Insulation performance: When the voltage between circuit and shell body is 1000V DC, the maximum resistance is 2000MΩ.
Withstand voltage properties: When the voltage between circuit and shell body is 2500V DC, withstand voltage time is 1 minute.
Dimension: 230×190×90mm
Weight: 2kg
Accessories
- Host
- Test wire
- Manual, Report, Certificate

详细

Datasheet
