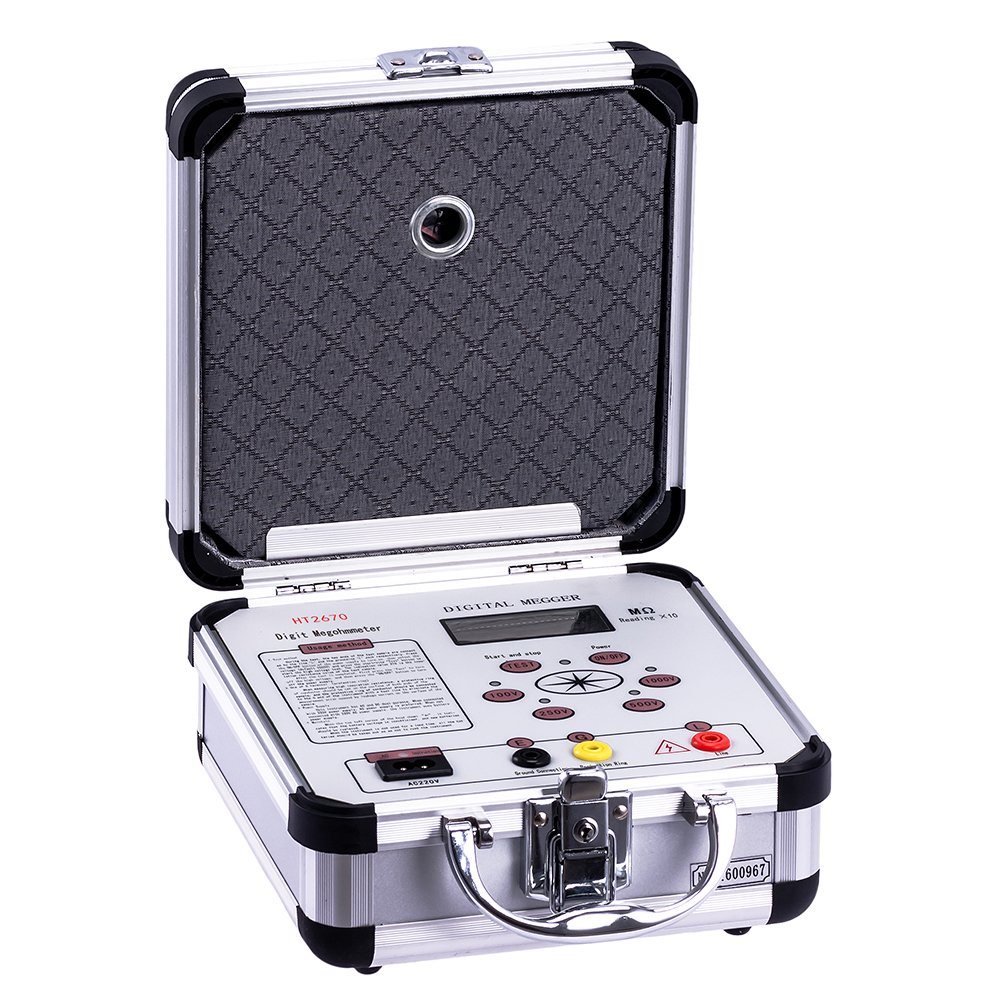

Wuhan HT2670 高压数字绝缘电阻测试仪 (0~19990MΩ)

  • 制造商: Wuhan
    Model: HT2670
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Wuhan
Model: HT2670
Warranty: 12 months

- Operating Conditions
+ Temperature: 0℃~+45℃
+ Relative humidity: ≤85%
- Output voltage grades: 100V,250V,500V,1000V
- Measuring range: 0~19990MΩ
- Resolution: 0.01MΩ,0.1MΩ,1.0MΩ,10.0MΩ
- Relative error: 0~2000MΩ≤±5%±2d; 2000MΩ~19990MΩ≤10%±2d
- Voltage/Load: 1000V/20MΩ
- Voltage drop: Approximately 10%
- Short-circuit current: >1.6mA
- DC: 8×1.5V(AA,R6) battery
- AC: 220V/50Hz
- Power dissipation: quiescent power dissipation≤160mW; Maximum power≤2.5W
- Dimension: 235×200×135mm3
- Weight: <1.4kg
Accessories
- Host
- Test Wire
- Power Cord
- Battery
- Manual, Report, Certificate
