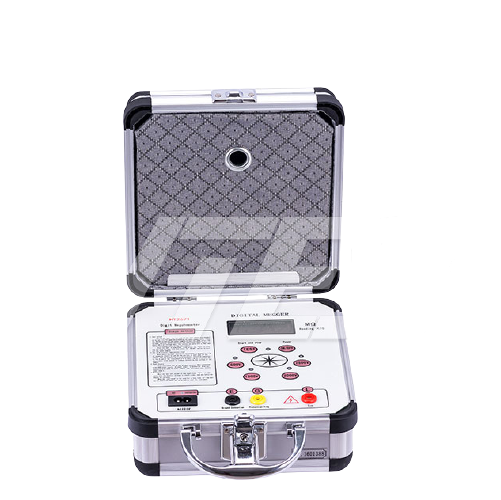

Wuhan HT2671 Insulation Resistance Tester (500~2500V; 0~19990MΩ)

Working conditions:

- Environment temperature: 0℃~+45℃

- Relative humidity: ≤85%RH

Output voltage level: 500V, 1000V, 2000V, 2500V

Measurement range: 0~19990MΩ

Resolution: 0.01MΩ, 0.1MΩ, 1.0MΩ, 10.0MΩ

Relative error: 0~2000MΩ ≤±5%±2d

                        2000MΩ~19990MΩ≤10%±2d

Voltage/load: 2500V/20MΩ

Voltage drop: about10%

Short-circuit current: >1.6mA

Direct current: 8×1.5V(AA, R6) battery

Alternating current: 220V/50Hz

Power: quiescent dissipation ≤160mW; maximum power ≤2.5W

Volume: 235×200×135mm3

Weight: <1.4kg
