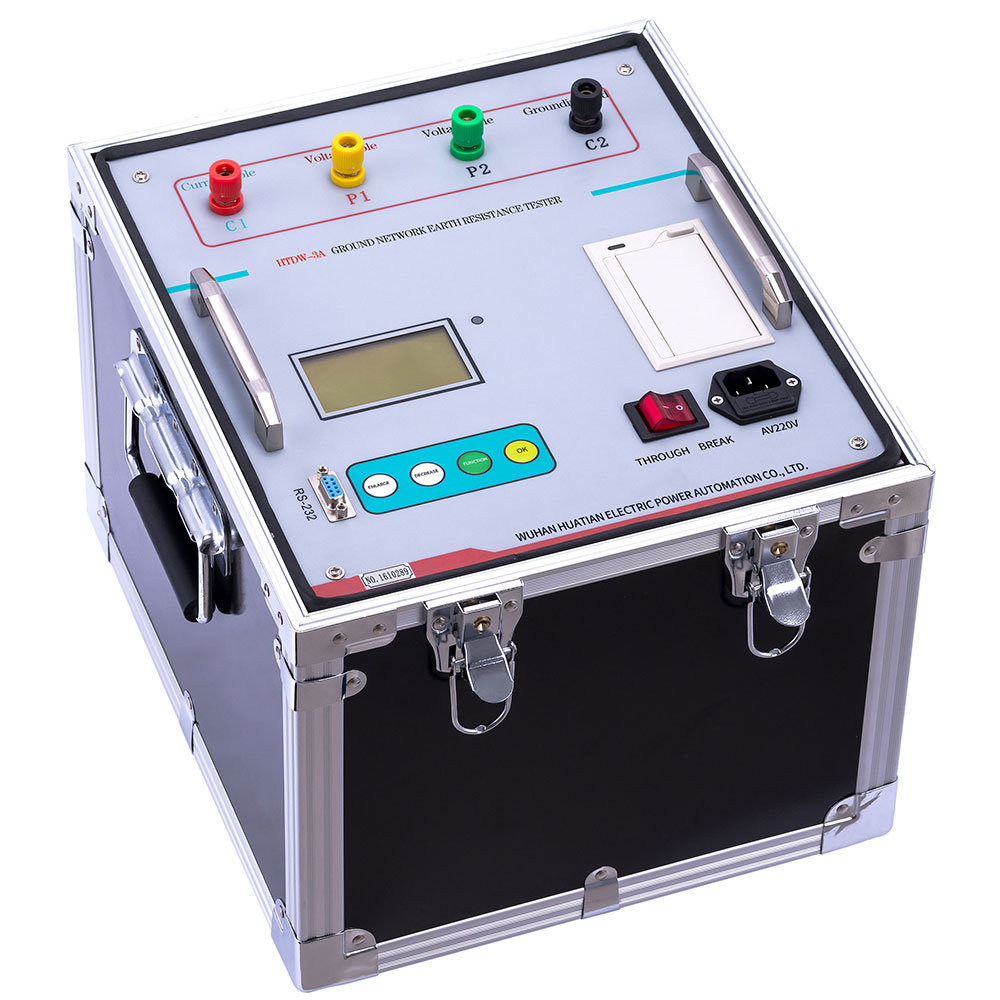

Wuhan HTDW-3A 大型地网接地电阻测试仪 (0~200Ω)

  • 制造商: Wuhan
    Model: HTDW-3A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manuafacturer: Wuhan
Model: HTDW-3A
Warranty: 12 months

- Impedance measurement range: 0~200Ω
- Resolution: 0.001Ω
- Measurement error: ±(reading×2%+0.005Ω)
- Maximum output voltage: AC 400V (45Hz、55Hz, double frequency, sine wave)
- Maximum output current: AC 3A (45Hz、55Hz, double frequency, sine wave)
- Current output gear: 3/2.5/2/1.5/1A
- Anti-jamming capability: Anti- frequency 50Hz voltage 10V
- Measured wire required value
+ Section surface of current wire copper; core≥1.5 mm2
+ Section surface of voltage wire copper; core≥1.0 mm2
- Power supply: AC 220V±10%,50Hz
- Dimension: 295×340×310mm3
- Weight: 28kg
Accessories
- Host
- Test Wire
- Reference Resistor
- Ground Anchor
- Power Cord
- Fuse
- Manual, Report, Certificate
