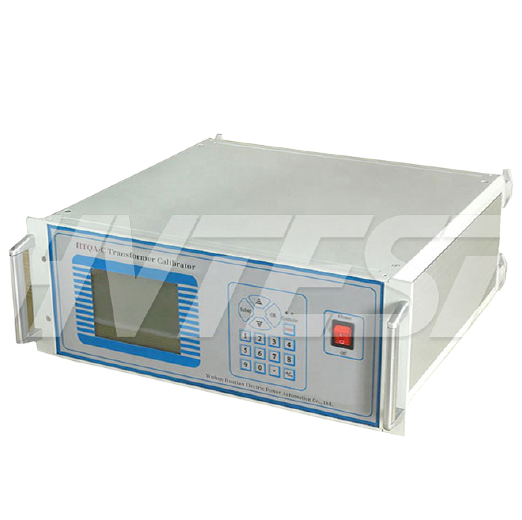

Wuhan HTQA-C 变压器校准器 (100V)

Working condition:

- 5℃-40℃ Relative humidity: <80%(25℃)

- Altitude: <2500m Power frequency: 50Hz±0.5Hz

- Power voltage: 220V±5V

Measuring range:

- In-phase component(%): 0.0001~200.0 Resolution: 0.0001

- Orthogonal component (min): 0.001~700.0 Resolution: 0.001

- Impedance(Ω): 0.0001~20.0 Resolution: 0.0001

- Admittance(ms): 0.0001~20.0 Resolution: 0.0001

Basic error:

- In-phase component: ΔX=±(X×2%+Y×2%)±Dx (with Class 1 to spare)

- Orthogonal component (with Class 1 to spare)

- “X”,“Y”---Values Displayed

- “Dx, Dy”---Quantified Error Dx=2, Dy=5

- Percentage: Class 1.5 (with Class 1 to spare)

Working range:

- (1) Current: (1%-149%)In (In=5A)

                     (5%-149%)In (In=1A)

- (2) Voltage: (5%-149%)Un (Un =100V,150V,100V/√3)

                     (5%-200%)Un (Un =100V/3)

Work load:

- (1) Current: TO to TX<0.12Ω cosΦ=1.0

- (2) Voltage: a to x<0.25VA (100V)

Weight: 5kg
