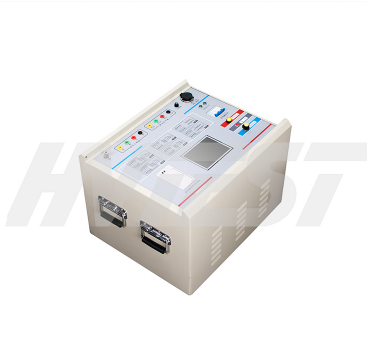

Wuhan HTXL-Y 输电线路故障距离测试仪
制造商: Wuhan Model: HTXL-Y - 报价要求
- 联系
- Power supply: 3 phase, AC380V±10%, 10A, 50Hz (effective value)
- Characteristics of the different frequency power supply
+ Max output voltage: 3 phase, 0~200V(effective value<±1%)
+ Max output current: 6.5A
+ Output frequency: 47.5Hz,52.5Hz
- Measurement range
+ Capacitance: 0.1~30μF
+ Impedance: 0.1~400Ω
+ Impedance angle: 0°~360°
+ Length of line: 0.3km-400km
- Measurement resolution
+ Capacitance: 0.01μF
+ Impedance: 0.01Ω
+ Impedance angle: 0.01°
- Measurement accuracy
+ Capacitance: ≥1μF, ±1%RD±0.01μF
<1μF时,±3%RD±0.01μF
+ Impedance: ≥1Ω时, ±1%RD±0.01Ω
<1Ω时, ±3%RD±0.01Ω
+ Impedance angle:Test condition: current>0.1A
±0.3°(voltage>1.0V); ±0.5°(voltage:0.2V~1.0V)
- Protection function: Over-current, over-voltage, grounding protection.
- THD: Sine wave,<2%.
- Service condition: Temperate: -15℃~40℃; Humidity ≤90%
- Dimension: 595*500*530mm
- Weight: 75KG
