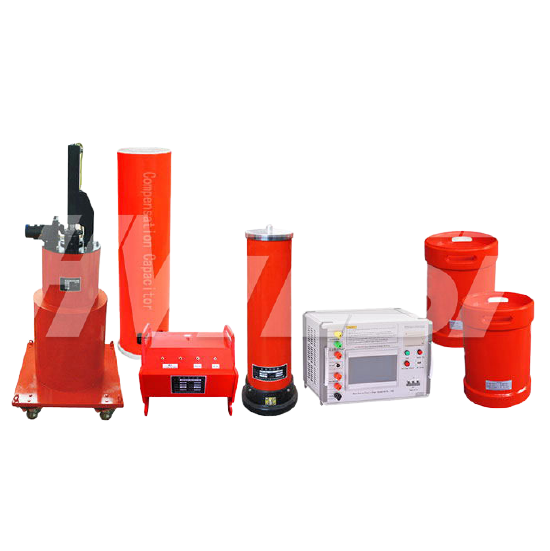

Wuhan HTXZ-50/50 变频串联谐振系统 (0~50kV)

Rated output voltage: 0~50kV(AC RMS)

Output frequency: 45~65Hz

Resonance voltage waveform: Pure sine wave, waveform distortion rate≤1.0%

Work system: Under full power output, normally continuous work time5min

Quality factor: 10~40

Frequency regulation sensitivity: 0.1Hz, Instability <0.05%

Maximum test capacity: 5000kVA and below

Working power supply: 220V and 380V±10%, Power frequency 50Hz±5%

Control console: 10kW/220V

Reactor: 50kV/1A

Excitation transformer: 10kW/5kV

Voltage divider: 50kV/500pF

Applicable objects: generator 0.07~0.13uF.10kV cable(300mm2)≤1.0km
