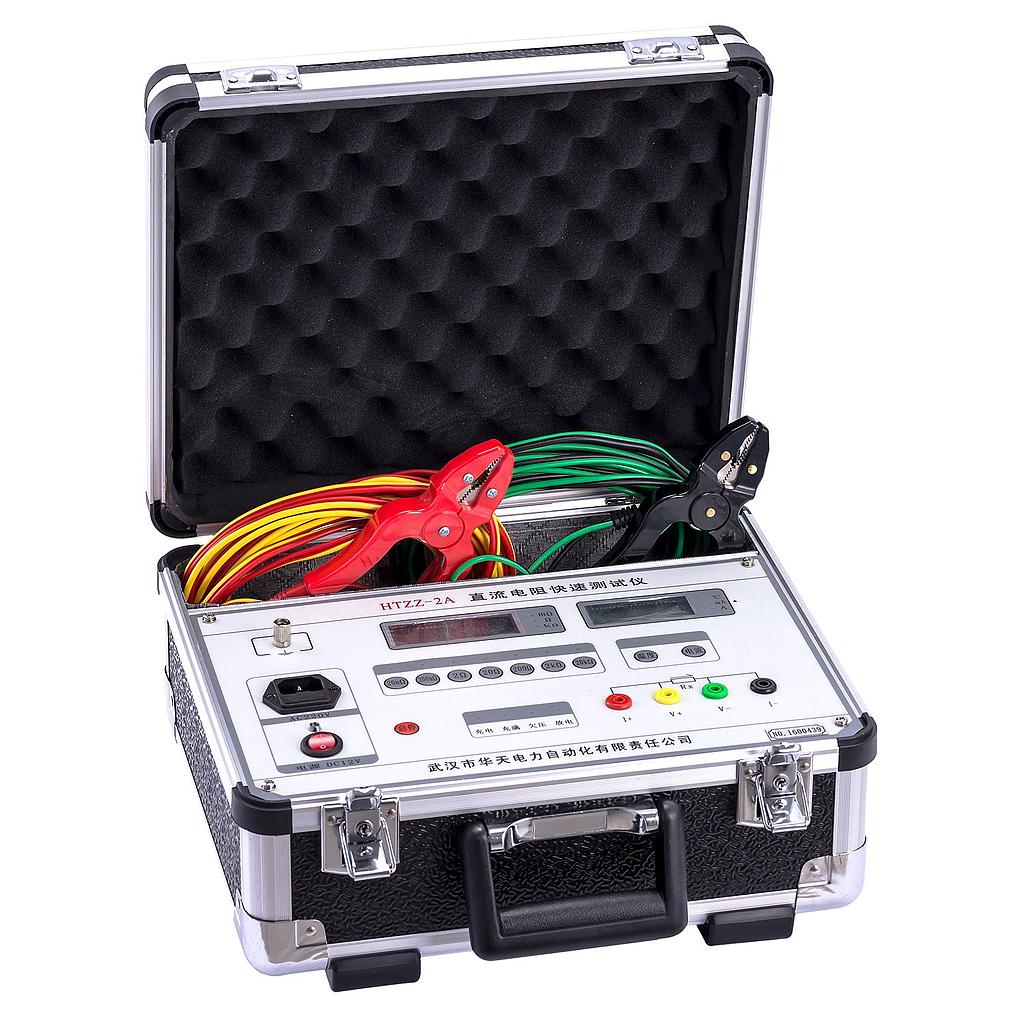

Wuhan HTZZ-2A 直流电阻快速测试仪 (1μΩ~2kΩ)

  • 制造商: Wuhan
    Model: HTZZ-2A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture: Wuhan
Model: HTZZ-2A
Warranty: 12 months

- Working condition: Temperature: 0℃~40℃; Relative humidity: ≤85%
- Measurement range: Six-gear range
+ 1μΩ~20mΩ
+ 20mΩ~200mΩ
+ 0.2Ω~2Ω
+ 2Ω~20Ω
+ 20Ω~200Ω
+ 200Ω~2kΩ
- Measuring accuracy: Class 0.2
- Max resolution: 1μΩ
- Constant current source:
+ 2A(1μΩ~20mΩ、20mΩ~200mΩ、0.2Ω~2Ω)
+ 200mA(2Ω~20Ω)
+ 20mA(20Ω~200Ω)
+ 2mA(200Ω~2kΩ)
- Working voltage
+ DC: 11V~14V
+ AC: 220V
- Power Dissipation: ≤15W
- Dimension: 365*330*180mm3
- Weight: 5kg(including test clamp and test lead)
Accessories
- Host
- Test Wire: 2
- Ground wire
- Fuse
- Power Cord
- Manual, Report, Certificate
