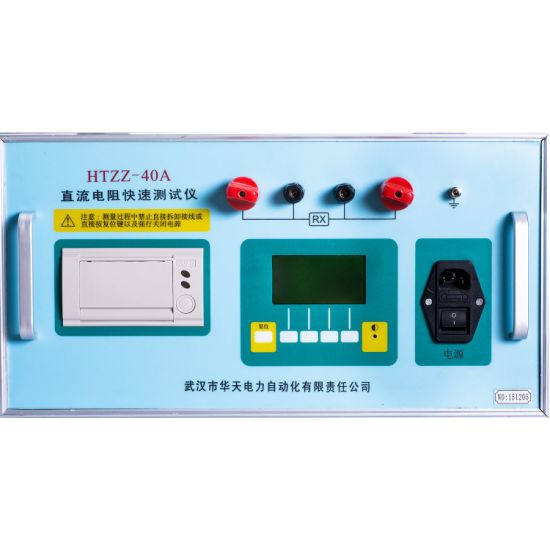

Wuhan HTZZ-40A 变压器绕组的直流电阻测试(20A, 1mΩ~8Ω)
制造商: Wuhan Model: HTZZ-40A - 报价要求
- 报价要求
- 联系
- Measurement current: 1A, 5A, 10A, 20A
- Measure Range
+ 2.5A: 10mΩ~8Ω
+ 5A: 1mΩ~4Ω
+ 10A: 1mΩ~2Ω
+ 20A: 1mΩ~1Ω
+ 40A: 1mΩ~500mΩ
- Accuracy: ±0.2%（full range）
- Data storage: 255
- Display mode: LCD display; Resistance display: 4 1/2 bits
- Max resolution: 0.1μΩ
- Power supply: AC220V±22V，50Hz±2Hz (Fuse 5A)
- Maximum Power Dissipation: 1200W (Test current:10A)
- Work Environment: Temperature: 0℃～40℃； Relative Humidity: ≤80%RH
Accessories
- Host
- Test Wire
- Thermal paper
- Fuse
- Power Cord
- Manual, Report, Certificate
