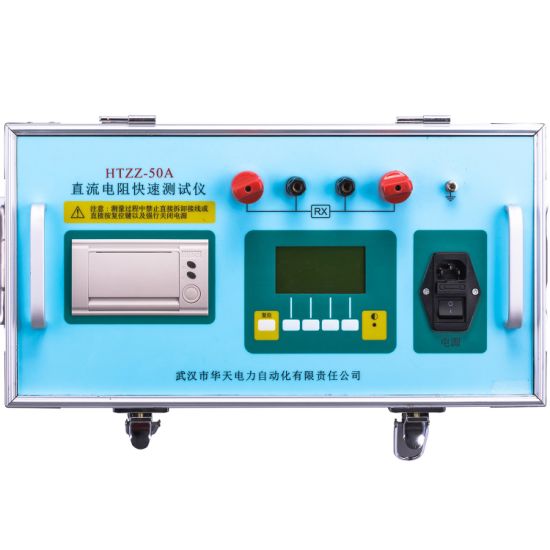

Wuhan HTZZ-50A变压器绕组的直流电阻测试(50A, mΩ~8Ω)

  • 制造商: Wuhan
    Model: HTZZ-50A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture: Wuhan
Model: HTZZ-50A
Warranty: 12 months

- Measurement current: 2.5A, 5A, 10A, 20A, 50A
- Measure Range
+ 2.5A: 10mΩ~8Ω
+ 5A: 1mΩ~4Ω
+ 10A: 1mΩ~2Ω
+ 20A: 1mΩ~1Ω
+ 50A: 1mΩ~500mΩ
- Accuracy: ±0.2%(full range)
- Data storage: 255
- Display mode: LCD display; Resistance display: 4 1/2 bits
- Max resolution: 0.1μΩ
- Power supply: AC220V±22V,50Hz±2Hz (Fuse 5A)
- Maximum Power Dissipation: 1500W (Test current:10A)
- Work Environment: Temperature: 0℃~40℃; Relative Humidity: ≤80%RH
Accessories
- Host
- Test Wire
- Thermal paper
- Fuse
- Power Cord
- Manual, Report, Certificate
