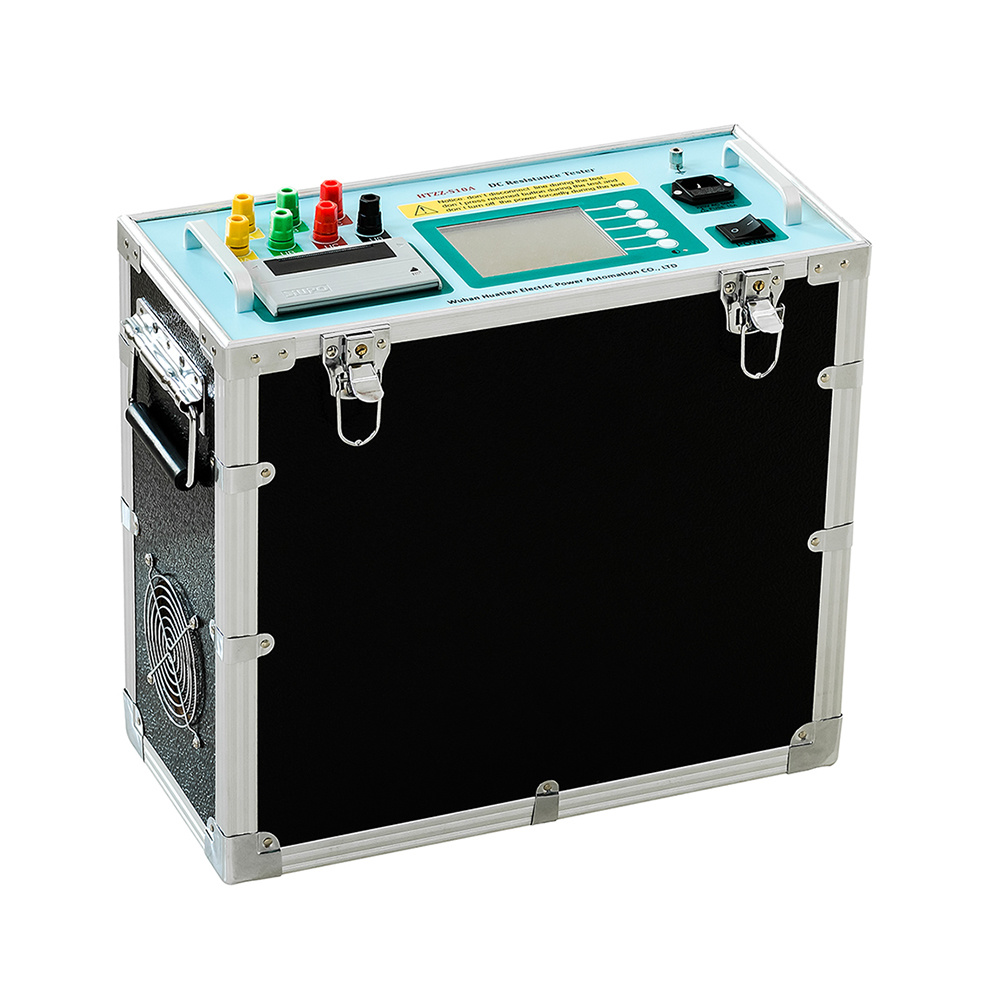

Wuhan HTZZ-S10A 三回路变压器直流电阻测试仪 (20A, 1mΩ~20Ω)

  • 制造商: Wuhan
    Model: HTZZ-S10A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture: Wuhan
Model: HTZZ-S10A
Warranty: 12 months

- Measurement current:
- Measurement range
+ Single phase: 10mΩ~20Ω (1A); 1mΩ~4Ω (5A); 1mΩ~2Ω (10A); 1mΩ~1Ω (20A)
+ Three phase: 10mΩ~6Ω/phase(1A); 1mΩ~1Ω/phase(5A); 1mΩ~0.6Ω/phase (10A)
- Resolution: 0.1μΩ
- Accuracy: ±0.2%+2d (full range)
- Data storage capacity: 150 groups
- Power: AC 220V±22V,50Hz±2 Hz
- Temperature: 0℃~40℃
- Humidity: ≤80%RH non condensing
- Dimension: 440*205*455mm3
- Weight: 17kg
Accessories
- Host
- Test Wire
- Thermal paper
- Fuse
- Power Cord
- Manual, Report, Certificate
