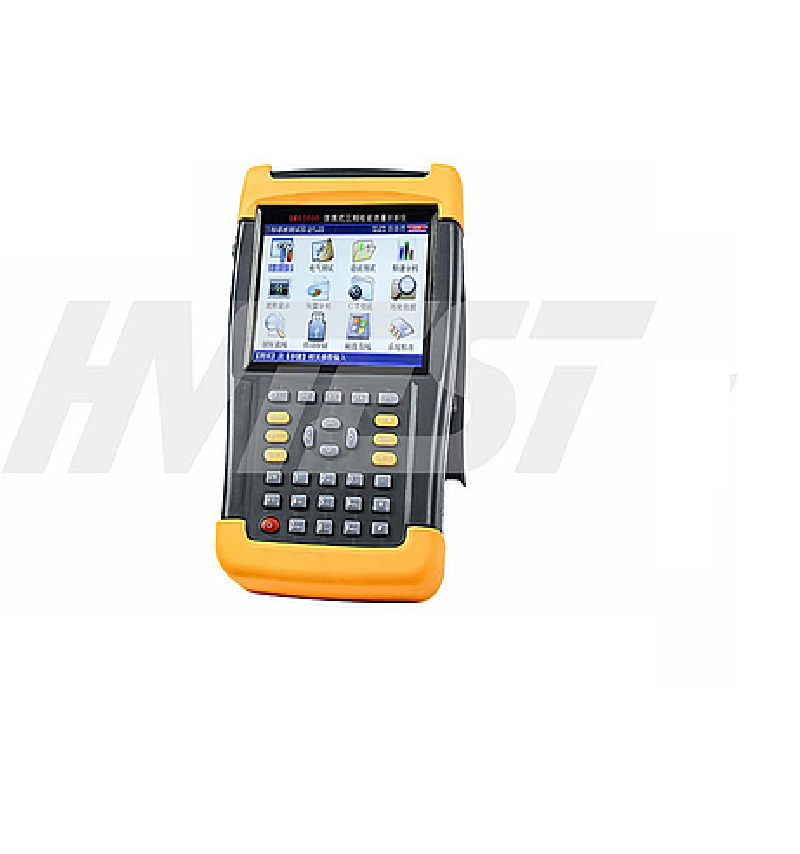

Wuhan SMG7000 Portable Three-Phase Electrical Tester

  • 制造商: Wuhan
    Model: SMG7000
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Wuhan
Model: SMG7000
Warranty: 12 months

Voltage/current/frequency
- Measurement range
+ 3 phase voltage: 10~700V(True RMS)
+ 3 phase current: 0.5~1000A(True RMS, Optional 1000A current sensor)
+ Neutral current: 0.5~10A(True RMS), Frequency: 40~70Hz
- Measurement accuracy
+ Voltage: ±0.5%
+ Current: ±0.5%
+ Frequency: ±0.01Hz
Harmonic measurement
- Measurement range
+ Voltage harmonics: total harmonic +1~50 harmonic
+ Current harmonic: total harmonic +1~50 harmonic
- Measurement accuracy
+ Voltage harmonics: ±0.1(%f)
+ Current harmonic:±0.05(A)
Power Measurement
- Measurement range
+ Active power: 0.05~700KW
+ Apparent power: 0.05~700KVA
+ Reactive power: 0.05~700KVAR
+ Power factor: 0.00~1.00
+ Active energy: 0.01~10000kWh
+ Apparent energy: 0.01~10000kVAh
+ Reactive energy: 0.01~10000kVARh
+ Average power factor: 0.00~1.00
- Measurement accuracy
+ Active power: reading ±50W
+ Apparent power: reading±50VA
+ Reactive power: reading±50VAR
+ Power factor: reading±0.005
+ Active energy: reading±0.05kWh
+ Apparent energy: reading±0.1kVAh
+ Reactive energy: reading±0.1 kVARh
+ Average power factor :reading±0.005
Three phase imbalance
- Measurement range
+ Fundamental voltage: 10~700V(True RMS)
+ Fundamental current: 0.5~1000A(True RMS)
+ Fundamental frequency: 40~70Hz
+ Phase angle: 0~360°
+ Imbalance: 0.0%~100%
- Measurement accuracy
+ Voltage: 0.5%
+ Current: 0.5%
+ Frequency: reading±0.01Hz
+ Phase angle: reading±0.3°
+ Voltage imbalance:reading±0.2%
+ Current imbalance:reading±1%
Monitoring records
- Measurement range: Parameters can be recorded
3 phase voltage, 3 phase current, zero phase current,
voltage harmonics (total harmonic, 1-25 harmonic),
current harmonic (total harmonic, 1-25 harmonic),
3 phase imbalance, active power, power factor, fluctuation, flicker
- Measurement accuracy: Same with the above related items
Remark: Time monitoring time max up to 960 hours.
Voltage sags and swells: Voltage sags and swells, temporary power failure Can record up to 40
Fluctuation: Voltage fluctuation: 0.1%~10.0% Error: ±5%
Flicker: Short Flicker;Long Flicker; Short flicker error: ±5%
Digital oscilloscopes:
- Measurement range: Three-phase voltage , three phase current, zero line voltage and neutral current transient waveforms
- Measurement accuracy
+ Max sampling frequency: 200KHz
+ Min sampling frequency: 100Hz
Accessories
- Host
- Test Wire
- Clips
- Communication Line
- Current Clamp
- Charger
- Manual, Report, Certificate
