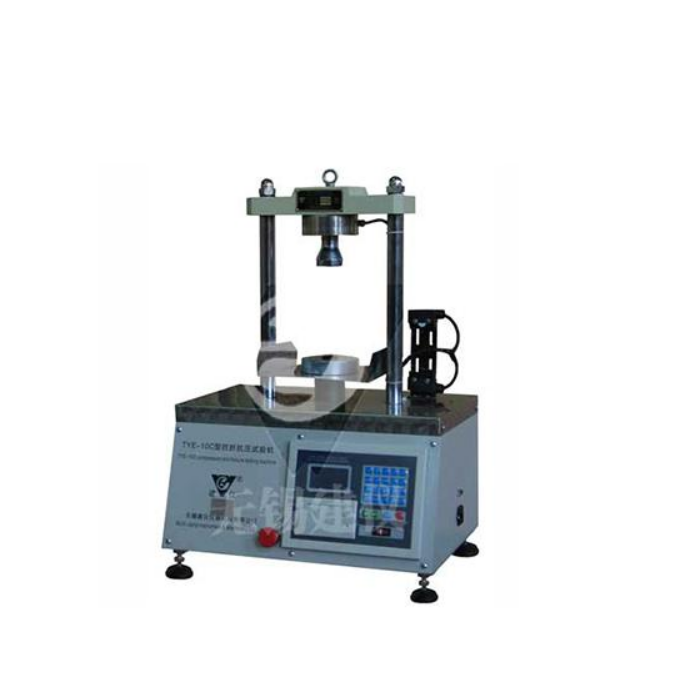

Wuxi TYE-10C 水泥-橡胶砂抗压试验机 (10kN)

The power supply: AC220V/50Hz(±10%)

MWP - maximum working pressure: 10kN

Loading speed: 50N/s±5 N/s

Relative error of indicating value: <±1%

Gauge fuse: 1A

Check Paper Size: 57mm wide (thermal printer paper)

Working atmosphere: Room temperature -10 ~ 40; Relative humidity: 30% ~ 85%.

External dimension: 500mm×365mm×710mm

Suttle: 65kg

Details

Summary

This testing machine is designed and manufactured according to the requirements of t0506-2005 in GB/ t17671-1999 and "highway engineering cement concrete test code".It is suitable for testing the compressive strength of cement sand.

This equipment for automatic constant load control, USES the high accuracy signal conditioner and 32-bit ARM microprocessor and other new technology, to the force value of measured data used by microprocessor based on the requirements for processing, printing, data storage, data transmission network, data network, and other functions, and can control operation on the microcomputer end test.Compared with the ordinary electric folding machine, it has the advantages of high precision, compact structure, simple operation, quick operation and computer operation.It is an indispensable testing equipment for cement plant, construction engineering unit, product quality supervision and inspection station, college and university, etc.
