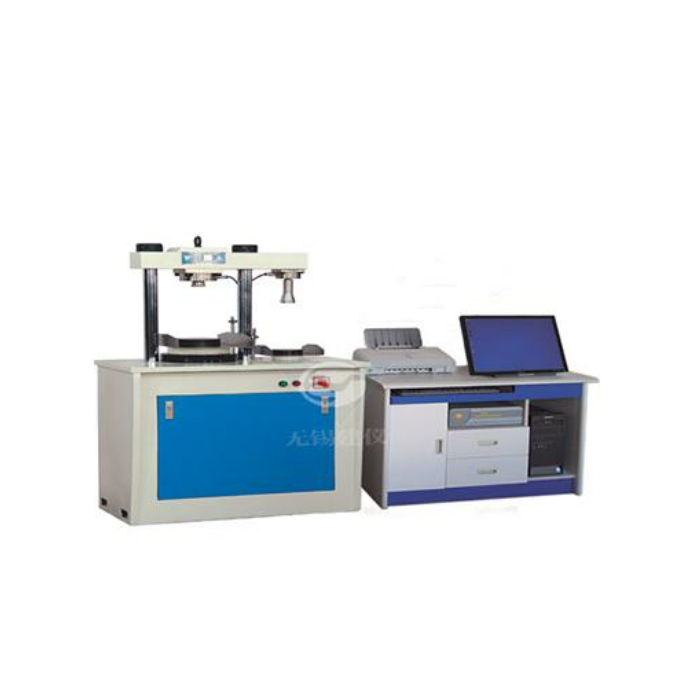

Wuxi Tye-300d 防折抗压试验机 (300kN)

Product description

It is mainly used to measure the compressive strength of cement sand, and it is controlled by the computer fully automatic control test process, display, record, etc.It has the advantages of high precision, compact structure and simple operation.The product conforms to GB/G17671, GB/T3722 standard requirements.

Main technical parameters:

Maximum test force:

Compressive strength: 300 kN

Bending: 10 kN

Indicator accuracy: + 1%, can be upgraded to 0.5.

Loading rate:

Compressive strength: 0.5-9.0 kN/s

Bending: 0.02-0.07 kN/s

Piston stroke: 120mm.

Motor power: 0.75kw AC380V.

Power and power: 380v, 50Hz, 1.2kw.

External dimensions: 850 * 460 * 1416mm.

Net weight: 400 kg material
