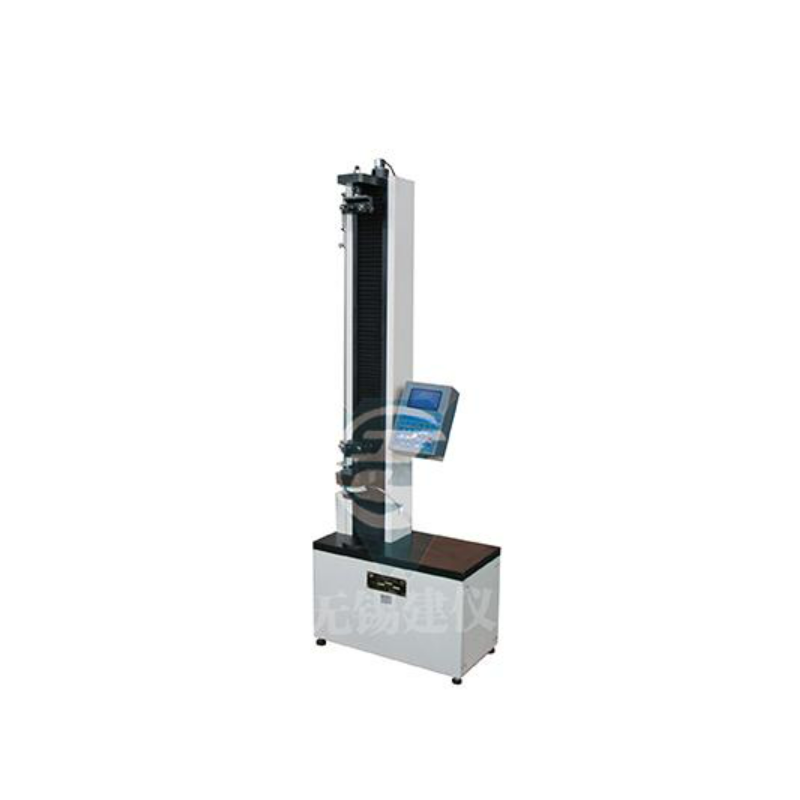

Wuxi WED-10 电子万能试验机 (10kN)

Maximum test force: 10kN

Test force accuracy: ±1%

Speed range: 0.2-500 mm/min

Displacement measurement: The resolution is 0.01mm

Tensile test space: 600mm

Compression test space: 700mm

Effective test width: 400mm

Circular specimen clamping diameter: Φ4~φ9mm

The diameter of flat sample holder: 0~7mm

The power supply: 220V±10%,50Hz

Dimensions: 600×320×1750mm

Force measuring system weight: 180kg


Used for testing of metal and non-metal stretching, compression, bending, cutting, tearing, stripping, etc.Meet the requirements of GB/ t16491-2008;It can also meet the testing requirements of various materials in GB/ISO, ASTM, JIS and other standards.
