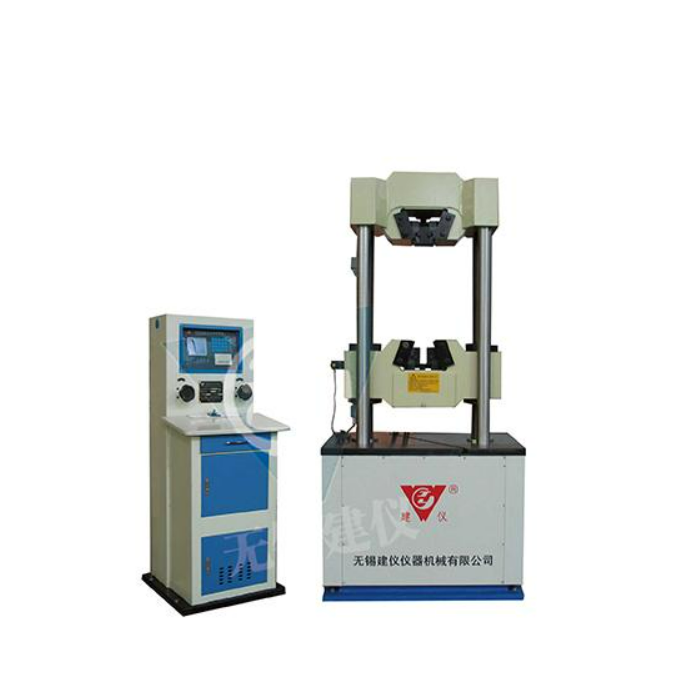

Wuxi WEW-100A 万能弯曲拉力试验机 (100kN)

WEW series on A universal testing machine is mainly used for metal material tensile, compression, shear and bending test,  also can do concrete, brick, stone and other non-metallic materials compression test. It conforms to GB/ t2611-2007, GB/ t16491-2008, GB/ t16826-2008, meet GB/T228.1-2010, GB/ t232-2010.

Max testing force: 100kN

Range of measurement: 2-100kN

Test force indicator accuracy: ±1%

Displacement indicator accuracy: ±1%

Maximum distance between upper and lower pressure plates (including piston stroke): 540mm

The distance between the column: 340mm

Piston stroke: 150mm

The circle sample holds the diameter: φ6～φ22mm

Flat sample holder diameter: 0-10mm

Upper pressure plate size: Φ100mm

Lower pressure plate size: Φ100mm

Maximum distance between bending rollers: 215mm

Power supply: 380V  50Hz  2.2kW

Overall dimension: 650×500×1894mm

Measurement system size: 660×600×1520mm

Suttle: 1650kg
