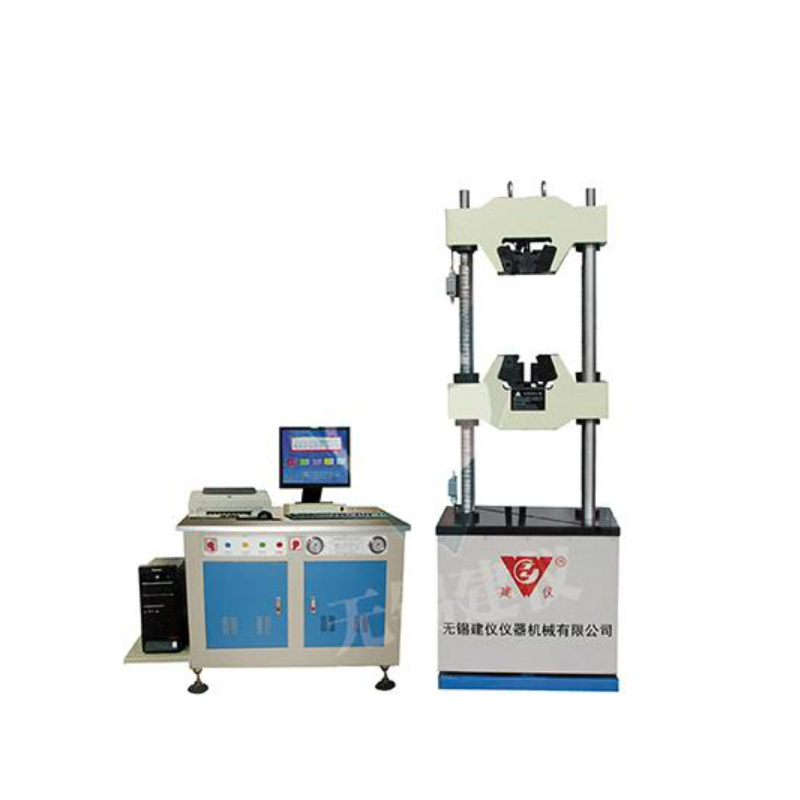

Wuxi WEW-100E 电液伺服万能试验机 (100kN)

Maximum test force: 100kN

Measurement range: 2-100kN

Test force indicator accuracy: ±1%

Deformation measurement range: 1%~100%F·S

Deformation indicator accuracy: ±1%

Displacement indicator accuracy: ±1%

The maximum distance between upper and lower pressure plate: 540mm

The distance between the column: 340mm

Piston stroke: 150mm

Circular specimen clamping diameter: φ6~φ22mm

Flat specimen clamping diameter: 0~10mm

Upper-pressure plate size: Φ100mm

Under the pressure plate size: Φ100mm

Bend the maximum distance between the roller: 215mm

Power supply: 380V  50Hz  2.2kW

Mainframe size: 650×500×1894mm

Measuring force system size: 1100×680×800mm

Net weight: 1800kg


For metal material tensile, compression, shear and bending test, deserve to go up suitable fixture, also can do concrete, brick, stone and other non-metallic materials compression test. It conforms to GB/ t2611-2007, GB/ t16491-2008, GB/ t16826-2008.Meet GB/T228.1-2010, GB/ t232-2010.
