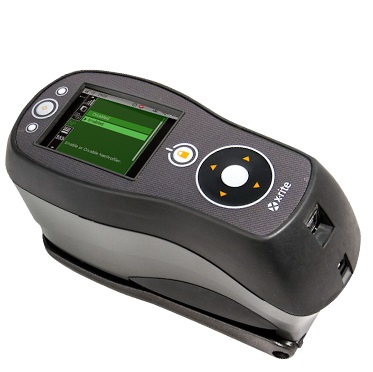

Xrite ci61+rtl Handheld Sphere Spectrophotometer (400nm-700nm, 0.01%, 0.30)

Short Term Repeatability - White: .10 ΔE*ab on white ceramic

Measurement Geometry: d/8°

Inter-Instrument Agreement: 0.30 ΔE*ab avg.

Illumination Spot Size: 14mm

Lamp Life: Approx. 500,000 measurements

Light Source: Gas-filled tungsten lamp

Measurement Cycle Time: ≈ 2 seconds

Measurement Spot: 8mm

Measurement Time: ≈ 2 seconds

Photometric Range: 0 to 200%

Photometric Resolution: 0.01%

Spectral Analyzer: Blue-enhanced silicon photodiodes

Spectral Interval: 10nm

Spectral Range: 400nm-700nm

Reflectance Aperture(s): 1

Humidity: 5% to 85%, non-condensing

Operating Temperature Range: 50° to 104°F (10° to 40°C)

Storage Temperature Range: -4° to 122°F (-20° to 50°C)

Dimensions (length, width, height): 21.3 cm 9.1 cm 10.9 cm

Weight: 1.06 kg

Package Dimensions (length, width, height): 51cm, 20cm, 41cm

Shipped Weight: 7kg

Communication Interface: USB 2.0

Instrument Display: Backlit Color Graphic LCD

Languages Supported: English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese

Software Development Kit: XDS4

Battery: Li-ion

Battery Life: 1000 measurements at 10 sec intervals

Voltage: 100-240VAC 50/60Hz, 12VDC at 2.5A

Calibration: White and Zero

Pass / Fail: Yes

What's Included?: Instrument with white calibration standard, black trap, manual(CD), AC adapter, carry case
