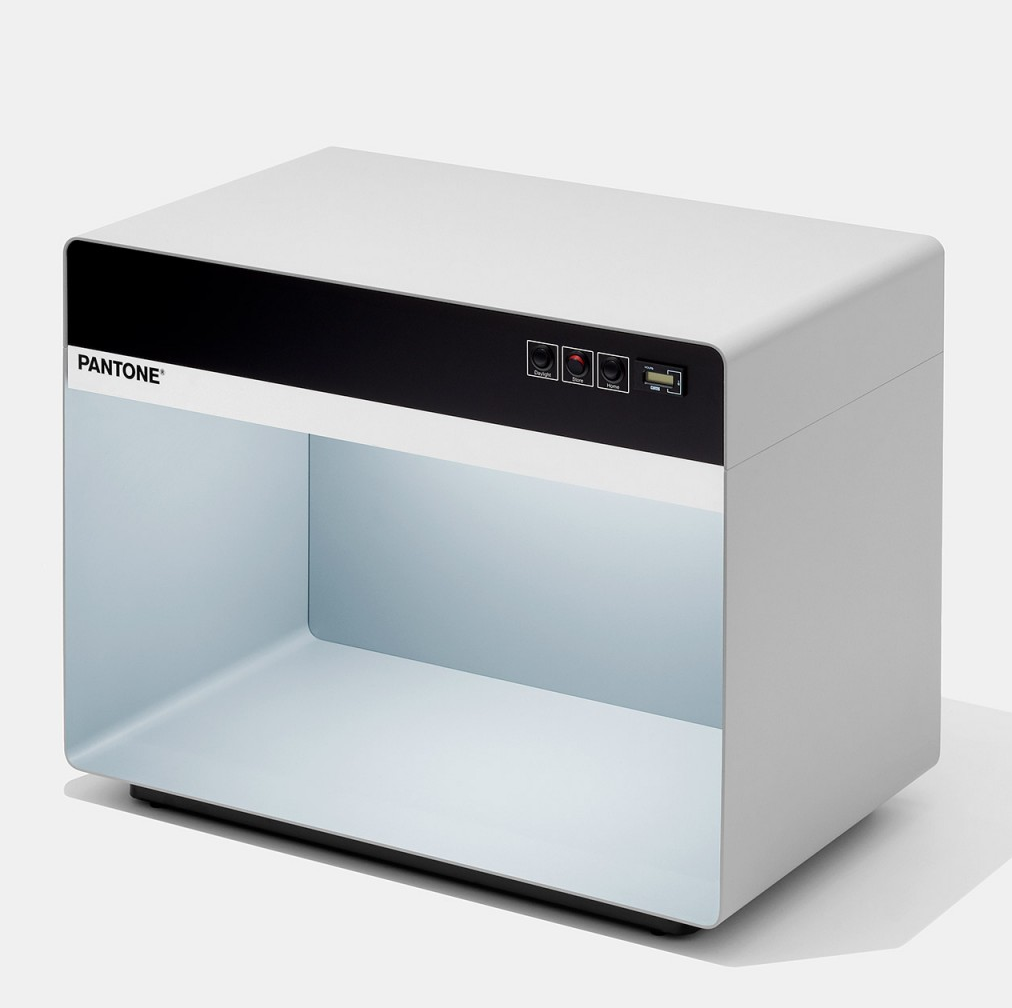

Xrite PANTONE 3 标准光源箱 (68.5 cm x 39.5 cm x 35 cm, 3)

Lamp Life: 2000hrs

Light Level Adjustment: N/A

Light Source: D50 with CWF or D65 with TL84, and CIE A

Total Light Sources: 3

Humidity: Rh 0 to 95% max (non-condensing)

Operating Temperature Range: 32°F to 104°F / 0°C to 40°C

Storage Temperature Range: 32°F to 104°F / 0°C to 40°C

Material: Aluminum

Unit Color: Munsell N7

Viewing Area (length, width, height): 7 in x 15.6 in x 13.8 in / 68.5 cm x 39.5 cm x 35 cm

Dimensions (length, width, height): 27.1 in x 19.7 in x 16.5 in / 69 cm x 50 cm x 42 cm

Weight: 52 lbs / 23.5 kg

Shipped Weight: 61 lbs / 27.5 kg

Communication Interface: Toggle Switch

Instrument Display: N/A

Languages Supported: English

Voltage: 100, 115, 127, 230V

Warm Up Time: 3min (flourescent)

Wattage: 50W Max.

Industry Standards: ISO, ASTM, AATCC, and BSI visual assessment requirements

Calibration: No

Internal Temperature & Humidity Sensor: No

Lamp Timer: Yes

Service Indicator: No

Safety: ETL Listed

UV Metamerism Index: Grade C

Visible Metamerism Index: Grade C
