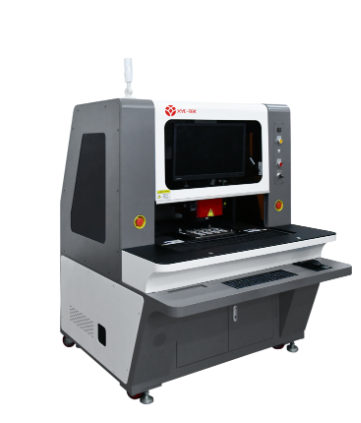

Xyc-tek UNG-MIX-651 多传感器全自动视频测量机 (0.2x, 1150x1200x1500 mm)

Dimension: 1150 x 1200 x 1500 mm

Weight: 500 kg

Max Load: 5 kg

Z-axis Movement Range: 100 mm

XY Measure range: From 3 to 8 inches 2D, 2.5D and 3D glasses

Inspection Accuracy: <0.01 mm

Repeatability: ≤ 0.005 mm

GRR: <10 %

Relevance: ≤ 0.01 mm

Optical System

Ultra-high resolution CCD camera

High definition dual telecentric lens

Magnification: 0.2x; Working distance: 178 mm

Laser System

Confocal Displacement Sensor; Range: 2.1 mm

Spot diameter: 9 μm; Working distance: 21.9mm


Optional surface light: coaxial light, ring light, strip light

Collimating backlight. (Brightness adjustable)

Software: LPI Pro 2021 V1.0 and CVI Pro 2021 V1.0

Power: AC100V-220V, 50/60Hz, 5KW
