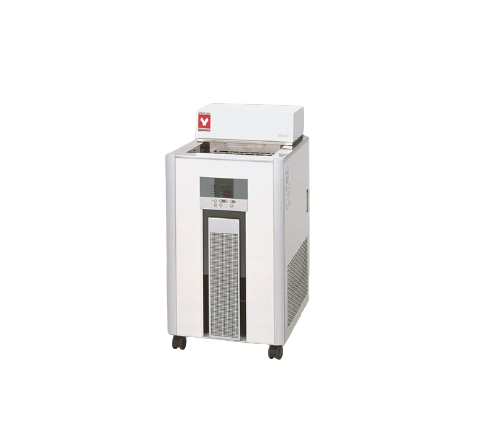

Yamato BB401 水浴 (13L)

Operating temperature range: -30 to +80°C

Temperature control accuracy: ±0.1°C

Temperature distribution accuracy: ±0.3°C

Temperature indicating unit: 0.1°C

Cooling capacity: Approx. 475W (408Kcal/h), at fluid temp.15°C

Temperature control: PID control

Operation function: Fixed temp., Auto stop , Auto start operations

Temperature sensor: Temp. controller: Pt thermal resistance, Overheat protection: K thermocouple

Temperature setting, display: Digital setting and display

Refrigerator, refrigerant: Air cooling 350W, R404A

Unit circulation ability(50/60Hz) Pump max. Flow: 2.8/3.2L/min.

Unit circulation ability(50/60Hz) Pump max. Lift: 1.1/1.4m

Heater: 850W

External circulation nozzle: O.D.10.5m of water outlet and return port

Operating environmental temp. Range: 5 to 30°C

Safety device: Overcurrent ELB, Self-diagnosis, Refrigerator overload protector, Refrigerator delay timer of protection, Refrigerator pressure detection, Float switch preventing pump idling, Auto overheat protection, Overheat protector, Key lock, etc..

Other functions: Drain cock, Condenser filter, Calibration off-set, RS485 external communication, Refrigerator pressure indicator, Power outage compensation, Temp. output terminal

Accessories: Top cover, Drain hose, Overflow hose, Shelf plate

Internal dimensions(W×D×H mm): 250×315×190mm

External dimensions(W×D×H mm): 420×550×885mm

Remarks(dimensions): Bath effective dimension W220×D150×H160mm ・ Bath capacity 13L

Power Source: AC220V 6A

Single-phase with step down transformer

Weight: 65kg
