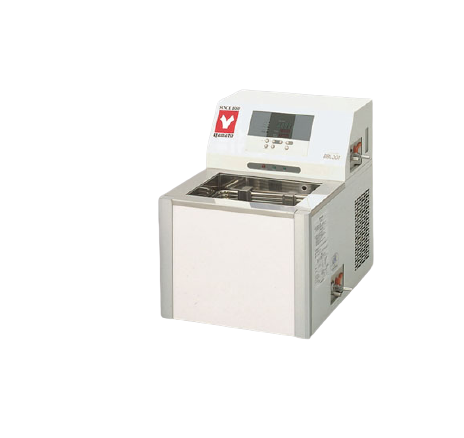

Yamato BBL301 水浴 (13L )

System: Pump circulation cooling/external closed circulation

Operating temperature range: -10~+80°C (at room temperature 20°C)

Temperature control accuracy: ±0.1°C

Temp. distribution accuracy: ±0.3°C

Cooling capacity: Approx. 410W (350Kcal/h), at fluid temp.15°C

Temperature control: PID control

Operation function: Fixed temp., auto stop , auto start operations

Temperature sensor: Temp. controller: Pt thermal resistance, Overheat protection: K thermocouple

Temp. setting, display: Digital setting and display

Refrigerator, refrigerant: 300W, Air cooled closed reciprocator / R404A

Strring method: Magnetic drive pump

Unit circulation ability (50/60 Hz): Max. flow 3.7/4.7L/min, pump capacity 11/12L/min, Max. lift 1/1.5m, pump capacity 1.5/2.1m

Heater: 900W

External circulation nozzle: O.D.10.5mm of water outlet and return port

Operating environmental temp. Range: 5~30°C

Safety device: Overcurrent ELB, Self-diagnosis, Refrigerator overload protector, Refrigerator delay timer of protection, Refrigerator pressure detection, Float switch preventing pump idling, Auto overheat protection, Overheat protector, Key lock, etc..

Other function: Water valve, Condenser filter screen, Deviation correction, External communication (RS485), Refrigerator pressure indicator, Power outagecompensation, Temp. output terminal

Accessories: Bottom shelf plate, Lid, Drain hose, Overflow hose

Internal dimensions（W×D×H mm）: W300×D240×H177.5mm (effective : W238×D190×H85mm)

External dimensions（W×D×H mm）: W500×D603×H500mm

Remarks(dimensions): Bath capacity (effective)　13L (11.5L)

Power Source: AC220V 6A

Single-phase with step down transformer

Weight: 55kg
