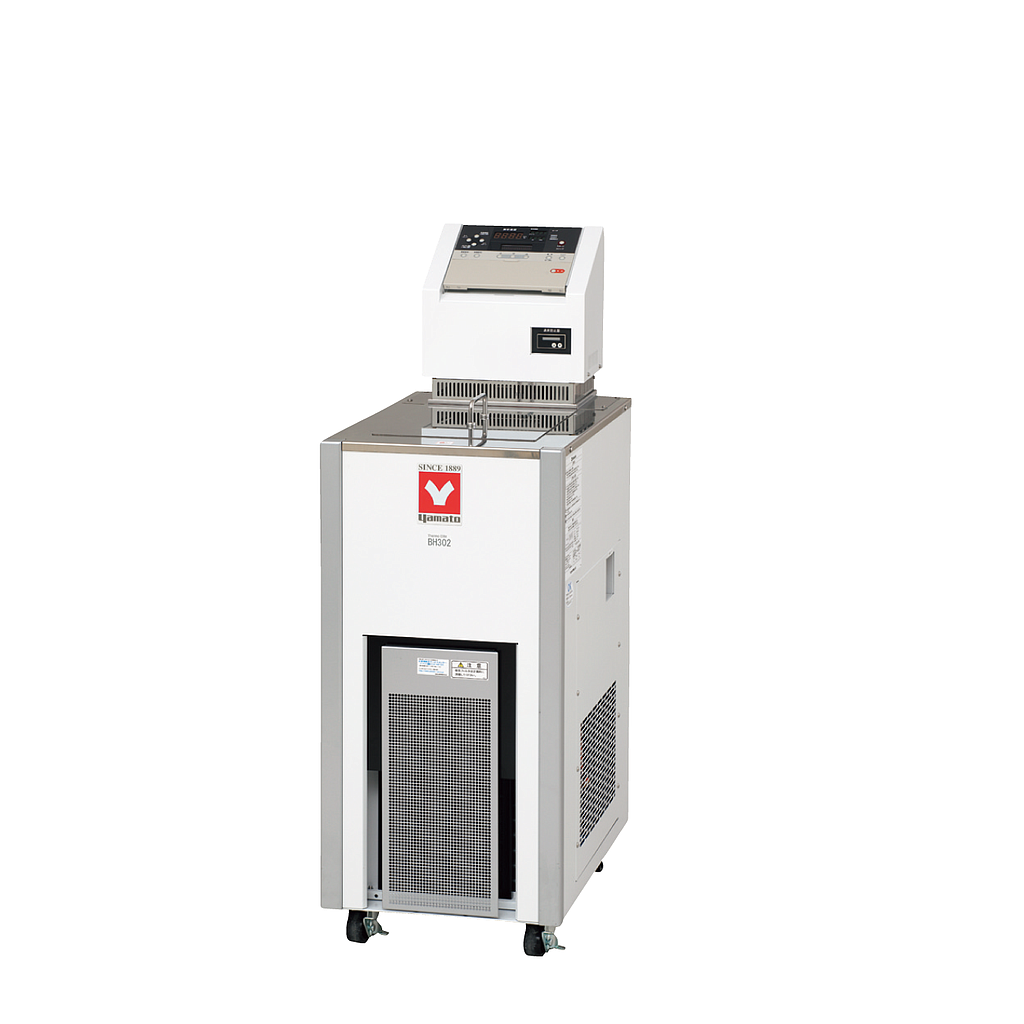

Yamato BH302 水浴 (30L)

Circulation system: Water jet pump circulation (closed system circulation)

Operating temp. range: -20 to +80°C

Temp. adjustment accuracy: ±0.02°C JTM K05 (at 20°C) ±0.05°C JIS (at 20°C)

Temp. indication unit:  0.1°C

Cooling capacity: Approx. 360W (310 kcal/h) at 20°C

Refrigerator/Coolant: Air-cooled, 300W/R404A

Pump max. flow (50/60Hz): 14/15L/min.

Pump max. lift (50/60Hz): 2.8/3.4m

Heater: 900W

Ambient temperature range: 5~30°C

Temperature control: PID control by microprocessor

Water bath dimension: W296×D501×H200mm

Internal capacity: 30L (liquid 20L)

Effective water bath dimension: W244×D338×H200mm

External dimensions: W386×D590×H1135mm (water bath height: 830mm)

Power source (50/60Hz): AC115V/AC220V Single phase with step-down transformer

Weight: Approx. 68kg

Accessories: External circulation hose nipple (1/2×ø14mm) ×2pcs., Drain hose×1pc
