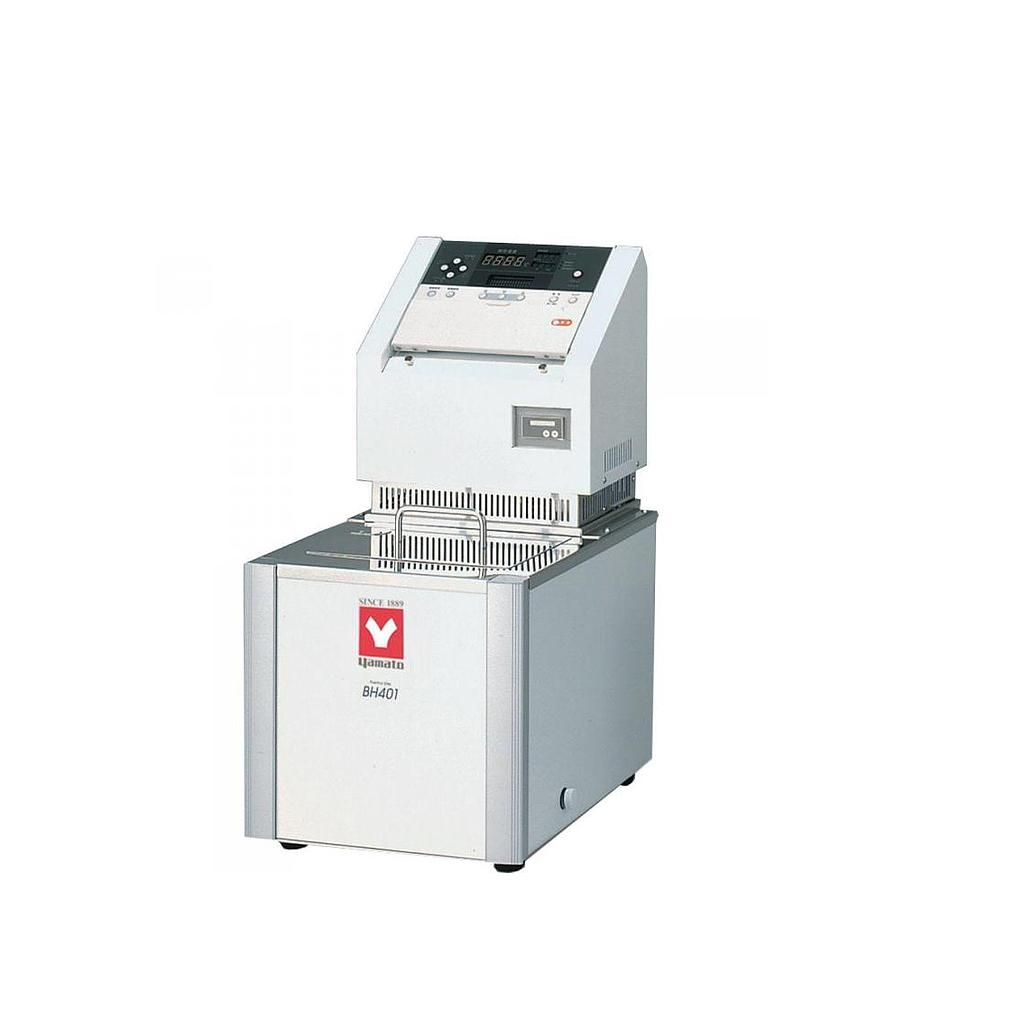

Yamato BH401 水浴 (1kW, 13L)

Circulation system: Water jet pump circulation/External closed circulation

Operating temperature range: RT+15~100°C

Temperature adjustment accuracy: ±0.01°C (water: RT+15°C~80°C)

Temperature indication unit: 0.1℃

Circulation Pump: Water jet pump circulation

Pump max. flow (50/60Hz): 14/15L/min. (Circulation pressure loss when below 10kPa)

Pump max. lift (50/60Hz): 2.8/3.4m (water flow about 0.5L/min)

Heater: 1kW

Ambient temperature range: 5~30°C

Temperature control/system: PID control by microprocessor

Sensor: W sensor: Pt 100Ω A-class (for temperature control)+ K-thermocouple (for overheat prevention) double sensor

Accessories: Hose nipple (1/2×ø14mm) 2pcs.

Internal dimensions(W×D×H mm): 239×299×200mm

External dimensions(W×D×H mm): 310×396×607mm

Remarks(dimensions): Effective tank dimensions W227×D150×H200mm(Frontage corner R34) Tank height 307㎜(rubber height included)Internal capacity13L(Liquid volume approx.10L)

Power Source: AC220V 5A Single-phase with step down transformer

Weight: 20kg
