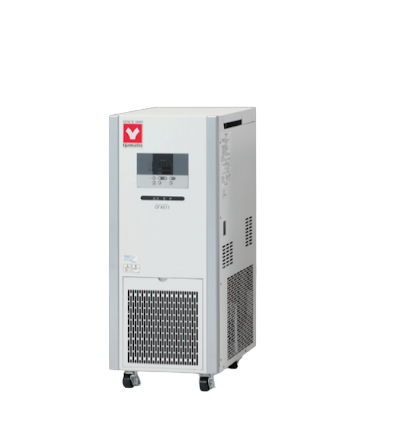

Yamato CFA611 冷却水循环机 (6L, 2.5KW)

Method: External closed circulation

Operating temperature range: -10 to +80°C

Temperature control accuracy: ±0.1°C JTM K05 (at 20°C)

Temperature setting, display: Digital setting and display

Temperature indicating unit: 0.1°C

Cooling capacity: Approx. 850W (731 Kcal/h), at fluid temp.10°C

Operating environmental temp. range: 5 to 35°C

Temperature control: PID control

Temperature sensor: Temp. controller: Pt thermal resistance, overheat protection: K thermocouple

Refrigerator, refrigerant: Air cooling 600W, R404A

Circulating pump: Magnetic drive pump 65W

Heater: Stainless steel heater, 2.5KW

Cooling coil: SUS brazing plate type

External circulation nozzle: Rc3/8

Accessories: Drain pipe, Overflow pipe

External dimensions(W×D×H mm): 380×535×955mm

Remarks(dimensions): Bath capacity 6L, Bath dimension W127xD317xH160mm

Power Source: AC220V 17A

Single-phase with step down transformer

Weight: 76kg
