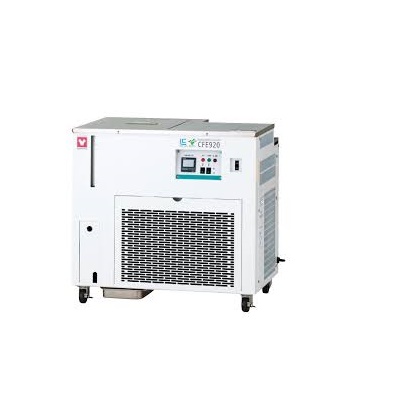

Yamato CFE920 冷却水循环机 (14L)

Circulation Type: External Closed Circulation

Operating Temperature Range: -20°C to 20°C

External circulation capacity pump max flow: 8.2/9.5L/min (50/60Hz)

External circulation capacity pump head: 9.5/13m (50/60Hz)

External circulation system number: 2 system

External circulation nozzle: Rc3/8 with stop valves (Hose nipples are optional)

Temp. control: Refrigerator inverter frequency control, Refrigerator ON/OFF operation (depends on the conditions, 3 minutes)

Temperature Sensor: T thermocouple

Temp. setting/display: Digital setting/display

Refrigerator: Air cooling sealed rotary type, 700W

Refrigerant: R407C

Cooling coil material: Nickel plated copper

Circulation pump: Magnet pump 125W

Ambient temperature range (during operation): 5°C to 35°C

Water tank Dimensions: W245 x D315 x H184mm

Water tank material: SUS304

Tank capacity: 14L (liquid volume 13L)

Accessories: Lid, Drain pan for overflow and circulation

External dimensions(W×D×H mm): 620×440×600mm

Power Source: AC115V/AC220V

Single-phase with step down transformer

Weight: 65kg
