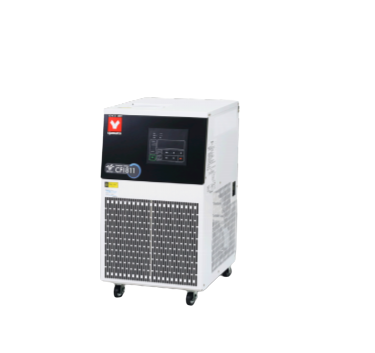

Yamato CFI 811 冷却水循环机 (5L, 1800W)

Type: General type

Circulation type: Closed System Circulation/Tap Water or Anti-freezing liquid

Operating temp. range: -10 to 30℃

Temp. fluctuation (JIS): 0.2°C

Cooling capacity (at Liquid Temp. 20°C): Approx. 1,800W

External circulation flow rate (50/60Hz): Approx. 15/17L/min

Pump max. lift (50/60Hz): Approx. 10/14m

Tank: Polyethylene

Temp. control: Refrigerator inverter control

Temp. sensor: Pt100Ω, T thermocouple

Temp. setting/display: Digital setting/display

Refrigerator/coolant: Air-cooling inverter type/R410A

Heat exchanger: Plate type heat exchanger, SUS316

External circulation Nozzle: Nozzle is option, Rc1/2

Circulation pump: Magnet Pump 65W

Accessories: Lid, Drain hose ( I.D. 9mm x 500mm), Drain hose nozzle (O.D. 10mm)

External dimensions(W×D×H mm): 380×520×690mm

Remarks(dimensions): Water bath capacity approx. 5L

Power Source: AC220V 5A

Single-phase with step down transformer

Weight: 40kg
