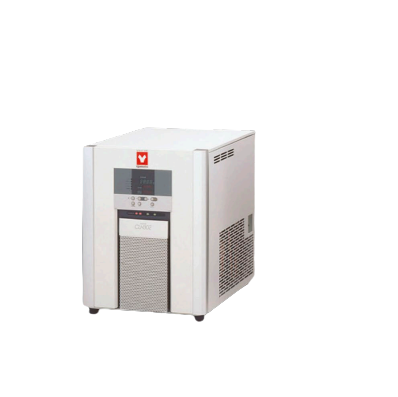

Yamato CLH302 冷却水循环机 (1.5L, 900W)

Method: External opened circulation

Operating temperature range: -10 to +80°C

Temperature control accuracy: ±0.1°C (JTM K05) at fluid temp.10°C

Cooling capacity: Approx. 450W (387Kcal/h), at fluid temp.15°C

Temperature control: PID control

Temperature sensor: Temp. controller: Pt thermal resistance, overheat protection: K thermocouple

Heater: 900W

Temperature setting, display: Digital setting and display

Refrigerator, refrigerant: Air cooling, 200W, R404A

Circulating pump: Magnetic drive pump

Unit circulation ability (50/60Hz), Max. flow, Pump capacity: 5.4/6.2L/min, (10.0/11.0L/min)

Unit circulation ability (50/60Hz), Max. lift, Pump capacity: 3.5/5.0m, (4.9/6.9m)

External circulation nozzle: O.D.13mm of water outlet and return port

Operating environmental temp. range: 5 to 30°C

Accessories: Circulating heat preservation pipe-1, Pump circulating tube-1, Hoop-4, Drain pipe-1

External dimensions（W×D×H mm）: 410×460×550mm

Remarks(dimensions): Bath capacity 1.5L, Bath dimension D.120×D200mm

Power Source: AC115V/AC220V Single-phase with step down transformer

Weight: 40kg
