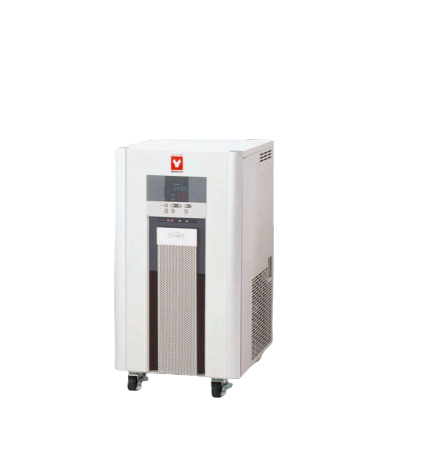

Yamato CLH401 冷却水循环机 (3L, 1000W)

Method: External opened circulation

Operating temperature range: -15 to +80°C

Temperature control accuracy: 0.2°C (JTM K05/JIS) at fluid temp.10°C

Cooling capacity: Approx. 600W (517 Kcal/h), at fluid temp.15°C

Temperature control: PID control

Temperature sensor: Temp. controller: Pt thermal resistance, overheat protection: K thermocouple

Heater: 1,000W

Temperature setting, display: Digital setting and display

Refrigerator, refrigerant: Air cooling, 350W, R404A

Circulating pump: Magnetic drive pump

Unit circulation ability (50/60Hz), Max. flow, Pump capacity: 5.4/6.3L/min, (10.0/11.0L/min)

Unit circulation ability (50/60Hz), Max. lift, Pump capacity: 3.7/5.3m, (4.9/6.9m)

External circulation nozzle: O.D.13mm of water outlet and return port

Operating environmental temp. range: 5 to 30°C

Accessories: Circulating heat preservation pipe-1, Pump circulating tube-1, Hoop-4, Drain pipe-1

External dimensions（W×D×H mm）: 380×513×725mm

Remarks(dimensions): Bath capacity 3L, Bath dimension I.D.150×D200mm

Power Source: AC115V/AC220V Single-phase with step down transformer

Weight: 55kg
