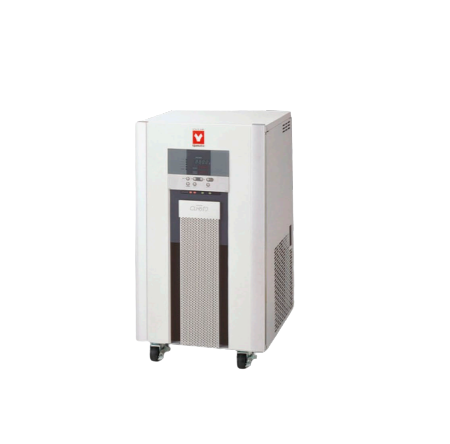

Yamato CLH610 冷却水循环机 (3L, 1.5kW)

Method: External opened circulation

Operating temperature range: -15 to +80°C

Temperature control accuracy: ±0.1°C (JTM K05) at fluid temp.10°C

Cooling capacity: Approx. 785W (676 Kcal/h), at fluid temp.15°C

Temperature control: PID control

Temperature sensor: Temp. controller: Pt thermal resistance, overheat protection: K thermocouple

Heater: 1.5kW

Temperature setting, display: Digital setting and display

Refrigerator, refrigerant: Air cooling, 600W, R404A

Circulating pump: Magnetic drive pump

Unit circulation ability (50/60Hz), Max. flow, Pump capacity: 6.7/7.8L/min, (15.0 /17.0L/min)

Unit circulation ability (50/60Hz), Max. lift, Pump capacity: 6.2/8.7L/m, (8.0/11.0L/min)

External circulation nozzle: O.D.13mm of water outlet and return port

Operating environmental temp. range: 5 to 30°C

Accessories: Circulating heat preservation pipe-1, Pump circulating tube-1, Hoop-4, Drain pipe-1

External dimensions(W×D×H mm): 380×615×725mm

Remarks(dimensions): Bath capacity 3L, Bath dimension I.D.150×D200mm

Power Source: AC220V 11A Single-phase with step down transformer

Weight: 65kg
