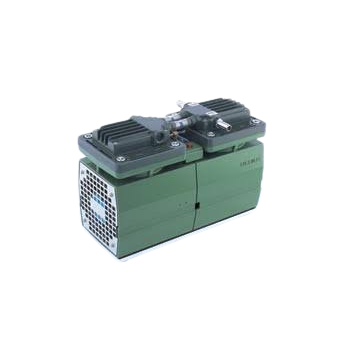

Yamato DA120S Diaphragm Vacuum Pump (13.3 x 10³ Pa, 144 L/min)

Effective pumping speed (50/60Hz): 120/144 L/min.

Ultimate pressure: 13.3 x 10³ Pa

Motor: AC100V, 200W, 4P, Capacitor run

Inlet, outlet pipe diameter: O.D. 14 x I.D. 9mm (G 3/8)

Ambient temperature: 7 to 40 ˚C

External dimensions(W×D×H mm): 162×358×238mm

Power Source: AC115 V/AC220V Single-phase with step-down transformer

Weight: 19kg
