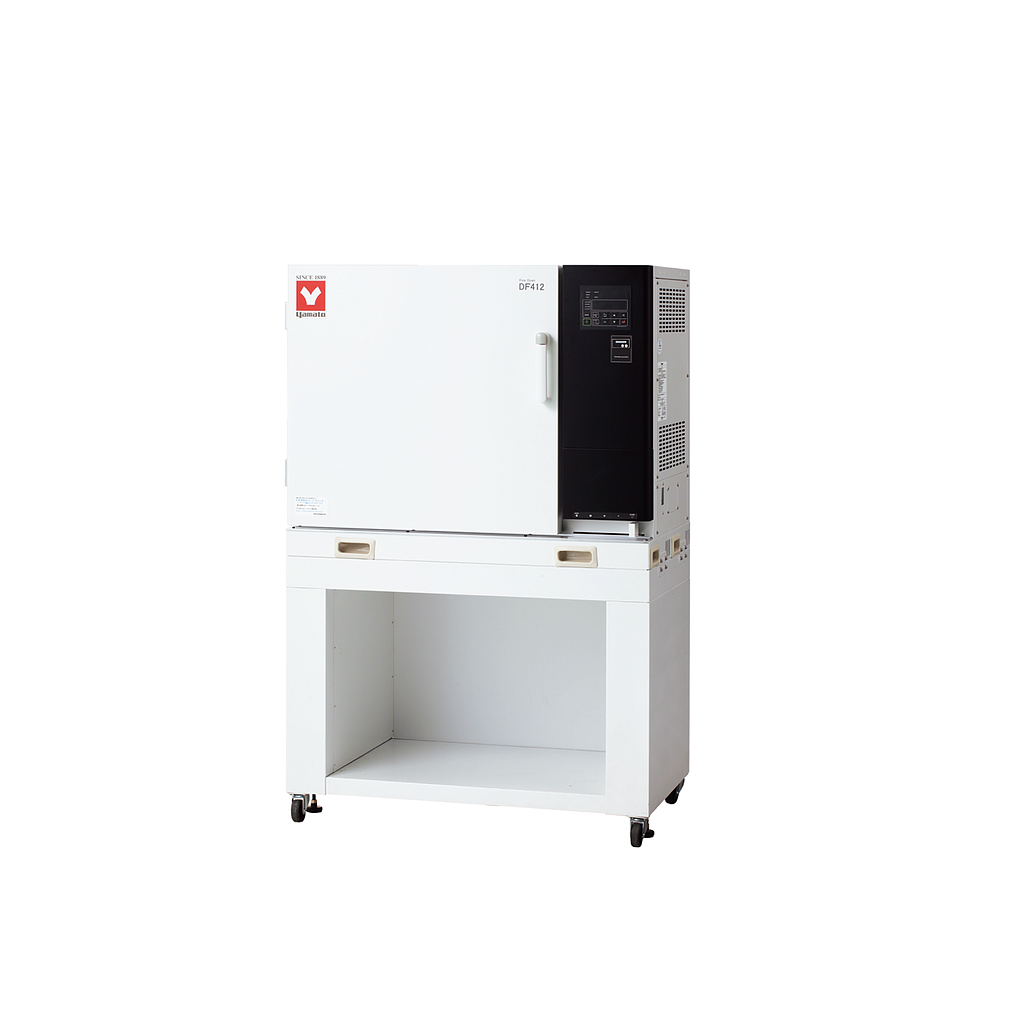

Yamato DF412 Fine Oven (91L,10A)

System: Forced convection and ventilation

Forced convection (Wind velocity setting:1-10)

- Operating temperature range: RT +15~260°C

- Temp. control accuracy: ±0.1°C (at 260°C) JTM K05

- Temp. distribution accuracy: ±1.5°C (at 260°C) JTM K05

- Max. temp. reaching time: Approx. 50 min

Temp. control system: PID control with a micro computer

Heater: Stainless pipe heater

Blower fan / Motor: Axial flow fan / Capacitor motor

Cable port: I.D. 33 mm×1 pc. (rear)

Heat insulating material: Glass wool

Internal dimensions (W×D×H): 450×450×450 mm

External dimensions (W×D×H): 1,050×630×850 mm

Internal capacity: 91L

Power supply: Single phase: AC220V, 10A

Weight: 112 kg

Stainless wire shelf / bracket: 2 pcs / 4 pcs
