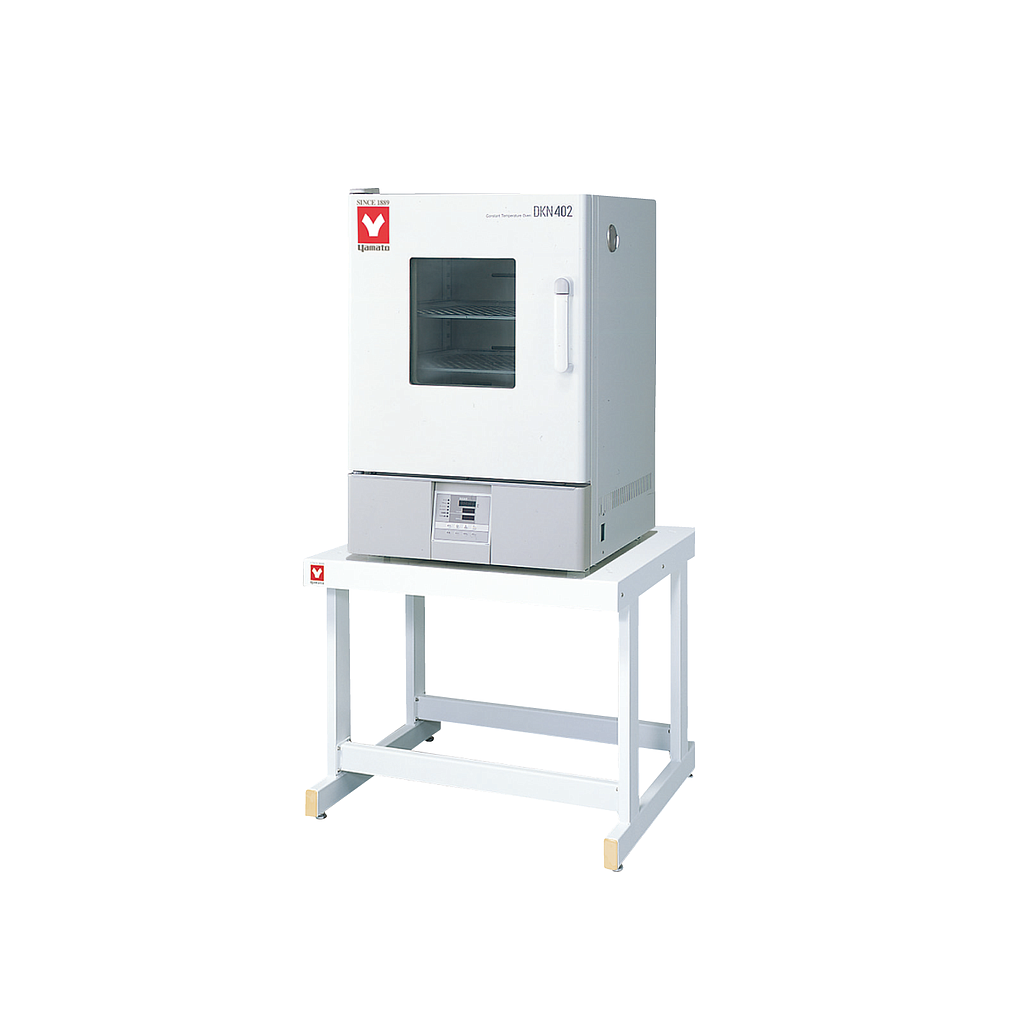

Yamato DKN402 送风定温恒温器 (90L, 1.2kW)

Operating temperature range: RT+10°C to 250°C

Temp. control accuracy: ±1°C (at 210°C) JTM K05

Temp. distribution accuracy: ±2.5°C (at 210°C) JTM K05

Heater: Stainless pipe heater 1.2kW

Fan type / Motor: Scirocco fan / Condenser type motor 1pc.

Cable port: 30 mm l.D.×1 pc. (Right side)

Exhaust port: 30 mm l.D.×2 pcs.(The top)

Temp. controller: SSR control

Internal dimensions (W×D×H): 450×450×450mm

External dimensions (W×D×H): 560×601×820mm

Withstand load of shelf: 15 kg / pc.

Internal capacity: 90L

Power supply: AC220V 6A; Single phase

Weight: 50kg

Shelf plate: Stainless steel, 1pc
