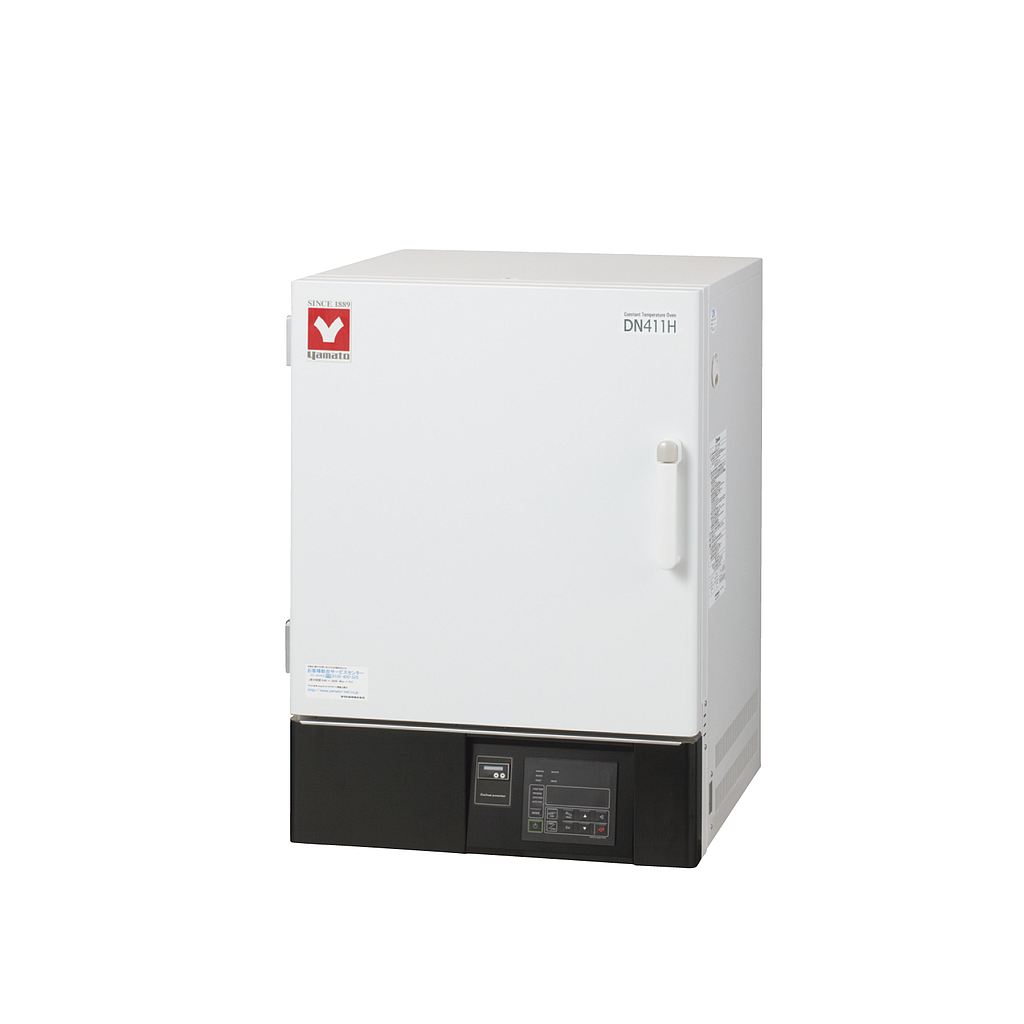

Yamato DN411H 强制对流烘干箱 (95L, 3.0kW)
制造商: Yamato Model: DN411H P/N: 212901 保障: 12 Month - 报价要求
- 联系
System: Forced air circulation
Operating temperature range: RT+15 to 360°C
Temp. control accuracy: ±0.2°C (at 360°C) JTM K05
Temp. distribution accuracy: ±3°C(at 360°C) JTM K05
Max. temp. reaching time: Approx. 60 min
Interior material: Stainless steel
Insulation material: Glass wool + Ceramic fiber
Heater: Stainless pipe heater 3.0kW
Fan type / Motor: Scirocco fan / Condenser type motor 1pc.
Cable port: 30 mm l.D.×1 pc. (Right side)
Exhaust port: 30 mm l.D.×2 pcs.(Back side)
Temp. controller: PlD control by microprocessor
Internal dimensions (W×D×H): 470×450×450mm
External dimensions (W×D×H): 640×695×915mm
Internal capacity: 95L
Power supply: AC220V 15A Single-phase
Weight: 90kg
