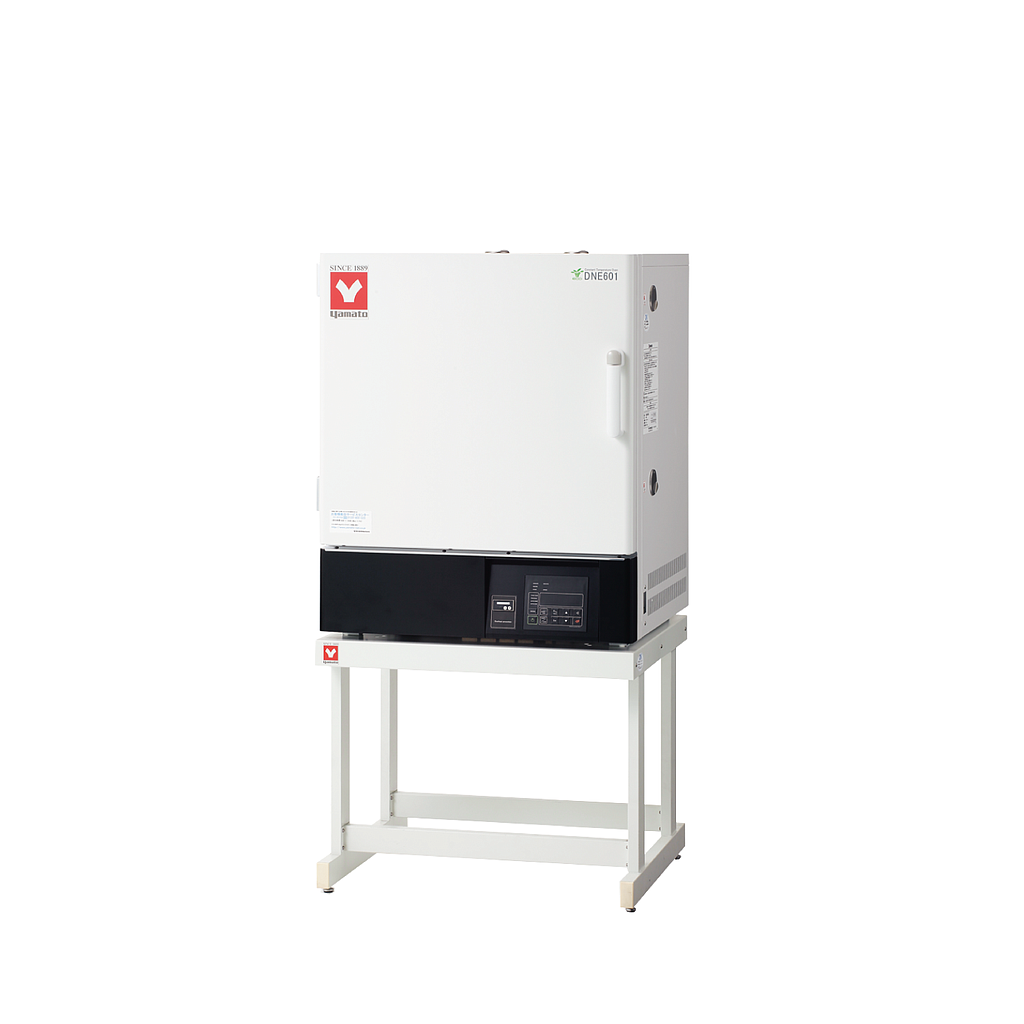

Yamato DNE611 强制对流烘干箱 (150L, 1.2 kW)

Circulation method: Forced air circulation

Operating temperature range: RT +20 to 210°C

Temp. control accuracy: ±0.5°C (at 210°C) JTM K05

Temp. distribution accuracy: ±2.0°C (at 210°C) JTM K05

Max. temp. reaching time: Approx. 70 min

Interior/Exterior material: Stainless steel /Electro-galvanized steel sheet with epoxy and melamine resin baking finish

Insulation material: Glass wool

Heater: Stainless pipe heater 1.2 kW

Fan type / Motor: Scirocco fan / Condenser type motor

Cable port: 33mm I.D. (the right, upper) 1pc.

Air in-take port: 33mm I.D. (the right, lower) 1pc.

Exhaust port: 33mm I.D.×2 (the top)

Temp. controller: PlD control by microprocessor

Internal dimensions (W×D×H): 600×500×500 mm

External dimensions (W×D×H): 730×695×910 mm

Internal capacity: 150L

Power supply: AC 220V Single-phase 7A

Weight: 77 kg

Accessories:

- Shelf plate: Stainless steel, 2 pcs

- Shelf bracket: 4 pcs. (1 pair - 2 pcs. is fixed)
