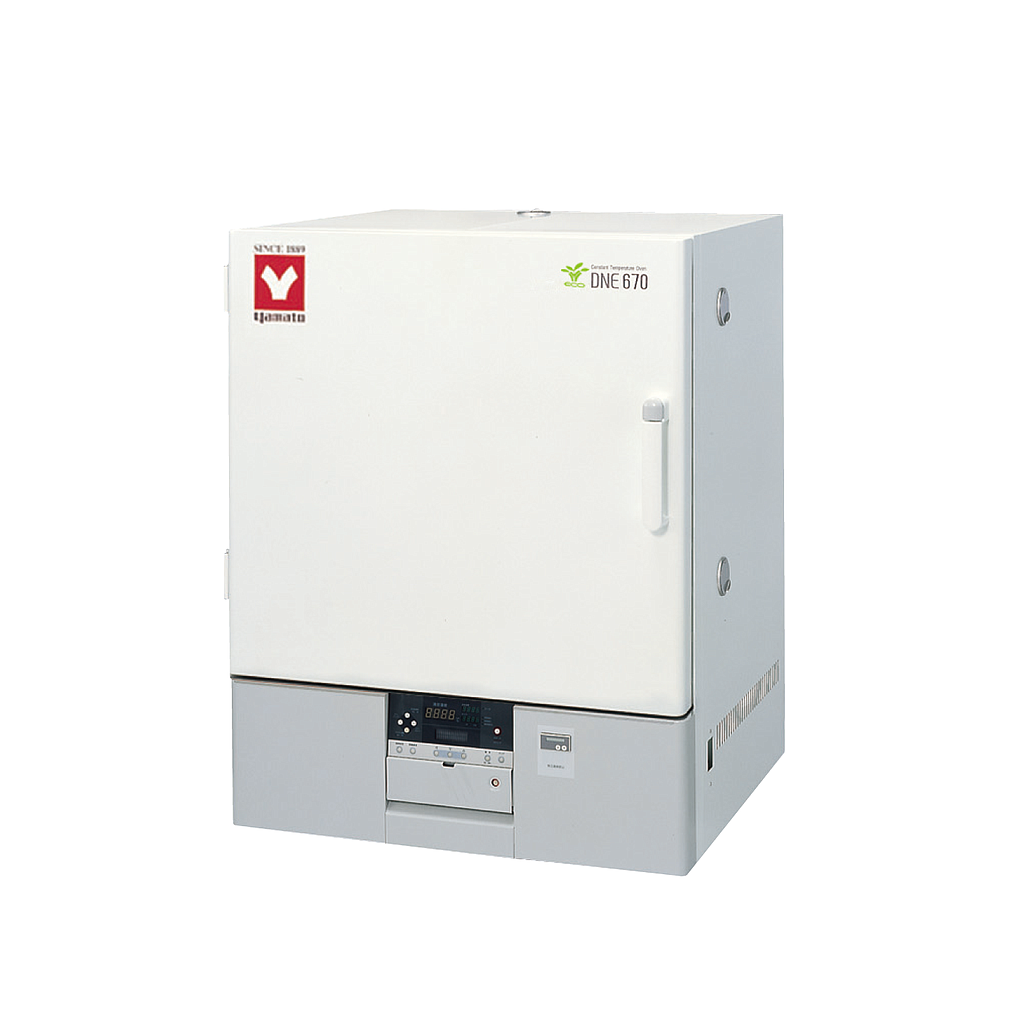

Yamato DNE670 强制对流烘干箱 (150L, 1.56 ~ 2.16 kW, Silicon rubber)

System: Forced air circulation

Operating temperature range: RT +10 to 260°C

Temp. control accuracy: ±0.2°C (at 260°C) JTM K05

Temp. distribution accuracy: ±2.0°C (at 260°C) JTM K05

Max. temp. reaching time: Approx. 65 min

Interior/Exterior material: Stainless steel /Electro-galvanized steel sheet with epoxy and melamine resin baking finish

Heater/heat insulator: SUS pipe heater / glass wool

Heater capacity: 200 to 240V / 1.56 to 2.16 kW

Fan type / Motor: Scirocco fan / Condenser type motor

Cable port: 30mm I.D. (the right) 1pc.

Door packing: Silicon rubber

Air in-take port: One on the side (heater room side)

Exhaust port: I.D. 30 mm (with damper) × 1 (the top)

Temp. controller: SSR control

Internal dimensions (W×D×H): 770×696×995 mm

External dimensions (W×D×H): 600×500×500 mm

Internal capacity: 150L

Power supply: Single phase: AC200 to 240V, 7 to 8.5A

Weight: 90 kg
