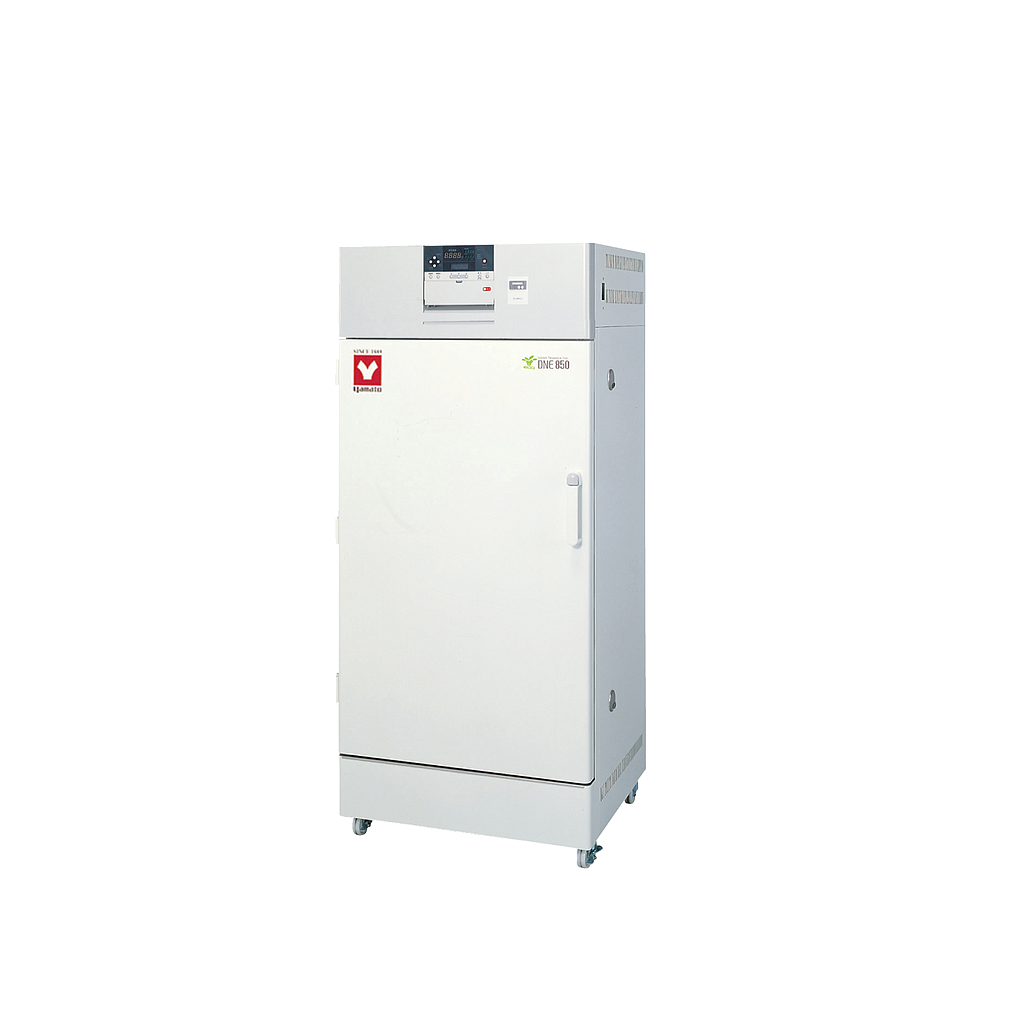

Yamato DNE850 强制对流烘干箱 (300L, 2.7 ~ 3.88 kW, Silicon rubber)

System: Forced air circulation

Operating temperature range: RT +10 to 260°C

Temp. control accuracy: ±0.2°C (at 260°C) JTM K05

Temp. distribution accuracy: ±2.0°C (at 260°C) JTM K05

Max. temp. reaching time: Approx. 55 min

Interior/Exterior material: Stainless steel /Electro-galvanized steel sheet with epoxy and melamine resin baking finish

Heater/heat insulator: SUS pipe heater / glass wool

Heater capacity: 200 to 240V / 2.7 to 3.88 kW

Fan type / Motor: Scirocco fan / Condenser type motor

Cable port: 30mm I.D. (the right) 1pc.

Door packing: Silicon rubber

Air in-take port: One on the side (heater room side)

Exhaust port: I.D. 30 mm (with damper) × 2 (the back)

Temp. controller: SSR control

Internal dimensions (W×D×H): 770×696×1,760mm mm

External dimensions (W×D×H): 600×500×1,000mm mm

Internal capacity: 300L

Power supply: Single phase: AC200 to 240V, 12.5 to 15A

Weight: 130 kg
