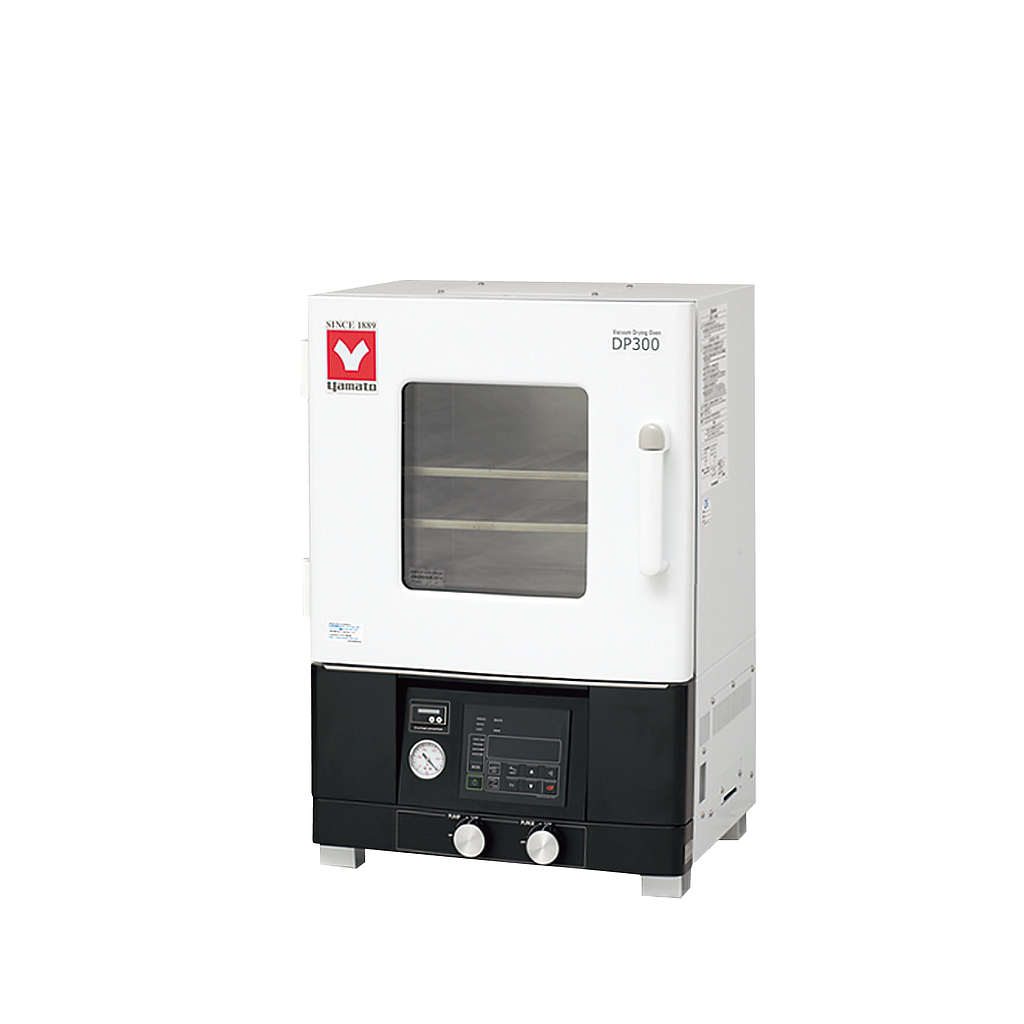

Yamato DP300 真空烘干箱 (27L, 1.05 kW)

System:  Vacuum drying by decompressed chamber direct heating

Operating temperature range: 40~240°C

Operating pressure range: 101~0.1kPa (760~1 Torr) at absolute pressure

Temp. control accuracy: ±1.0 °C (at 240 °C) JTM K05

Max. temp. reaching time: Approx. 120min.

Interior material: Stainless steel

Exterior material: Cold rolled steel plate baking coating

Temp. control method: PlD control by microprocessor

Heater: Mica heater 1.05 kW

Heat insulating material: Rock wool

Internal dimensions (WxDxH): 300×300×300mm

External dimensions (WxDxH): 510×460×782mm

Internal capacity: 27L

Power source:AC115V/AC220V Single phase with step down transformer

Weight: Approx.  72 kg

Accessories: Shelf plate (Aluminum punting metal) 2 pcs.
