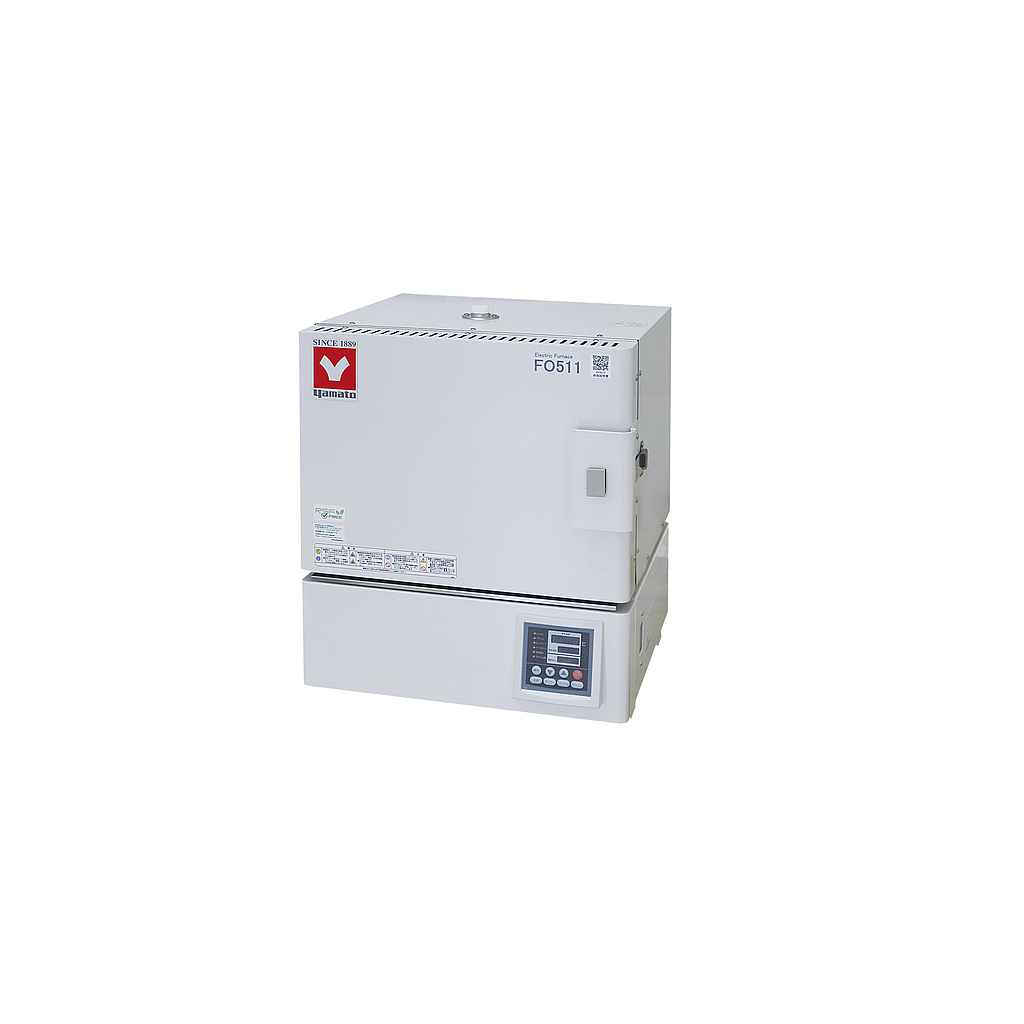

Yamato FO511 标准电炉 (11.3L, 2.5kW)

Operating temp. range: 100 to 1,150℃

Temp. control accuracy: ±2.0℃(at 1,150℃)

Max. temp. reaching time: Approx. 80min.

Chrome-free electro-galvanized steel plate, Chemical proof painting

Internal material: Alumina fiber

Sensor: R-thermocouple

Heater: Iron-chrome wire 2.5kW

Exhaust port: 20 mm I.D. (upper part)

Cooling Fan Type: Axial fan motor

Temp. controller: PID control by microprocessor

Accessories: 1 exhaust cap, 1 thermal fuse

Internal dimensions(W×D×H mm): 300×250×155mm

External dimensions(W×D×H mm): 507×504×627mm

Remarks(dimensions): 11.3L

Power Source: Single Phase AC200V 13.5A Plug is not attached, Electric code length is 2m

Weight: 44kg

Detail

Datasheet
