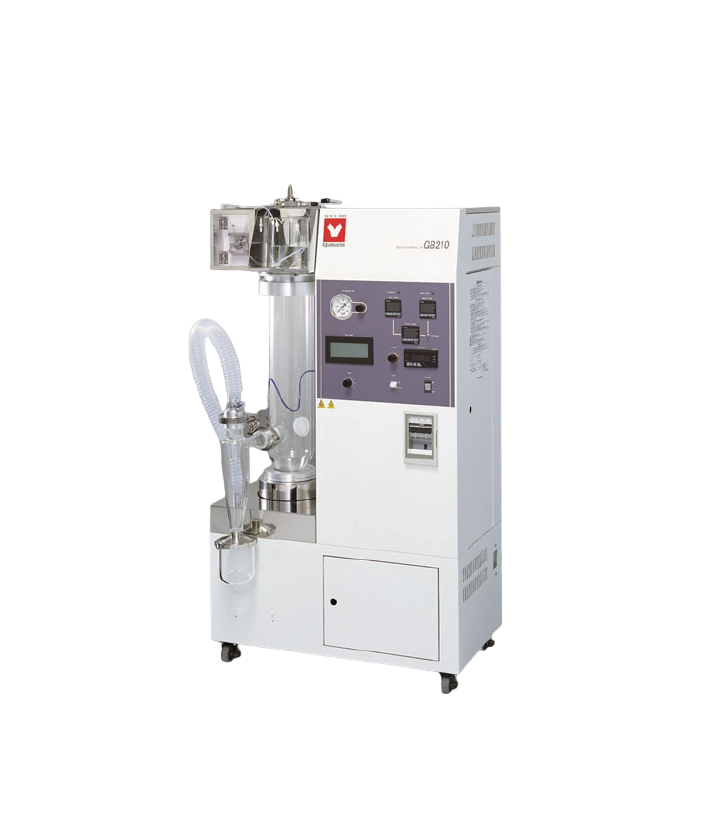

Yamato GB210-A Spray Dryer Pulvis Mini Spray (0.3MPa)

Temp. adjusting range: 40 to 220°C (inlet temperature), 0 to 60°C (Outlet temperature)

Temperature adjusting accuracy: Inlet temperature±1°C

Spraying system: Two-way nozzle, Nozzle No. 1A as standard

Drying air amount adjusting range: 0 to 0.7m3/min

Spray air pressure adjusting range: 0 to 0.3MPa

Liquid sending pump flow rate range: 0 to 26mL/min

External output: Inlet temperature, Outlet temperature, Temperature outlet (4-20 mA)

Automatic lift: Moving up/down of glass chamber automatic lift

Temperature adjusting device: PID digital temperature adjusting device

Touch panel: Blower, Heater, Liquid sending pump, Pulse jet switch, Error display

Control select switch: Inlet temperature, Output temperature control switch (Outlet temp. control is conditional)

Heater: 2.0 kW (at 200V) to 2.88 kW (at 240V)

Liquid sending pump: Fixed amount peristaltic pump

Spraying air pump: Spraying air compressor (Sold separately) is used.

Service outlet: For stirrer: AC100V, Max. 2A

Suction blower: Bypass blower, Brushless DC motor

Filter: Suction filter, Exhaust filter

Recovery of solvent: Solvent recovery unit GAS410 (sold separately) is used.

Spray nozzle cooling mechanism: Connector: Nipple×2, O.D.:ø10.5 mm

Spray air connection diameter: Nipple diameter:ø7 mm

Exhaust connecting diameter: ø50mm

Safety device: Inlet/Outlet temperature overheat, Sample feed reverse rotation mechanism, Over current electric leakage breaker, Nozzle connection error

Accessories: Silicon tube (with a stopper)×3, Tiron tube (with a stopper)×2 Exhaust duct (with one hose band)×1, Outlet temperature sensor, Spray air tube, Sample box, Static electricity removal earth, Teflon braided hose 5m (with two hose bands), Container table

External dimensions(W×D×H mm): 760×420×1350mm

Power Source: AC220V 17A

Weight: 110kg
