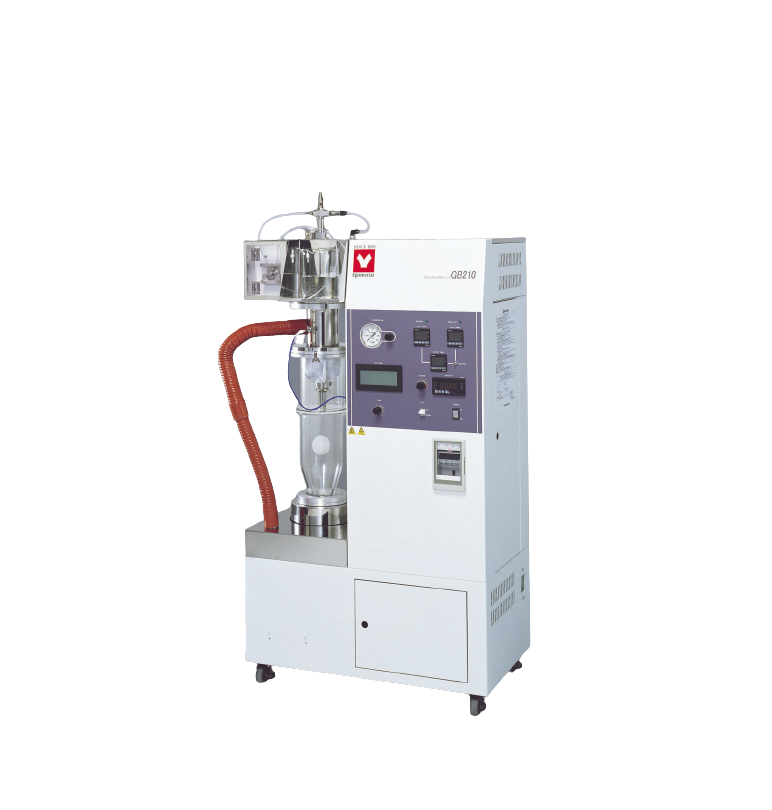

Yamato GB210-B Spray Dryer Pulvis Mini Bed (0.3MPa)
制造商: Yamato Model: GB210-B P/N: 212778 - 报价要求
- 联系
Temp. adjusting range: 40 to 220°C (inlet temperature), 0 to °60(Outlet temperature)
Temperature adjusting accuracy: Inlet temperature±1°C
Spraying system: Two-way nozzle, Nozzle No. 1A as standard
Drying air amount adjusting range: 0 to 0.7m3/min
Spray air pressure adjusting range: 0 to 0.3MPa
Liquid sending pump flow rate range: 0 to 26mL/min
External output: Inlet temperature, Outlet temperature, Temperature outlet (4-20 mA)
Automatic lift: Moving up/down of glass chamber automatic lift
Temperature adjusting device: PID digital temperature adjusting device
Touch panel: Blower, Heater, Liquid sending pump, Pulse jet switch, Error display
Control select switch: Inlet temperature, Output temperature control switch (Outlet temp. control is conditional)
Temperature sensor: K-thermocouple
Heater: 2.0kW (at200V) to 2.88kW (at240V)
Liquid sending pump: Fixed amount peristaltic pump
Spraying air pump: Spraying air compressor (Sold separately) is used
Service outlet: For stirrer: AC100V, Max. 2A
Suction blower: Bypass blower, Brushless DC motor
Filter: Suction filter, Exhaust filter
Spray nozzle cooling mechanism: Connector: nipple×2, O.D.: ø10.5mm
Spray air connection diameter: Nipple diameter: ø7mm
Exhaust connecting diameter: ø50mm
Safety device: Inlet/Outlet temperature overheat, Sample feed reverse rotation mechanism, Over current electric leakage breaker, Nozzle connection error
Accessories: Silicon tube (with a stopper)×3, Tiron tube (with a stopper)×2, Exhaust duct (with one hose band)×1, Outlet temperature sensor, Spray air tube, Sample box, Static electricity removal earth, Teflon braided hose 5m (with two hose bands), Container table
External dimensions(W×D×H mm): 760×420×1350mm
Power Source: AC220V 17A Single phase
Weight: 110kg
