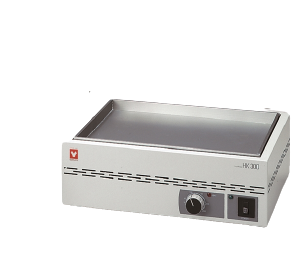

Yamato HK300 加热板 (7.8 kg)

Operating temperature range: 50 to 250℃

Temp. control accuracy (with no load): ±5.0℃ at 250℃ (at the center point of to plate) with no load

Max. temp reaching time: Approx. 40 min. at the center point of top plate (with no load)

Thermoregulator: Liquid expansion type

Hot plate material: Aluminum

Heater: 900 W

Safety devise: Circuit protector

Internal dimensions（W×D×H mm）: W388×D288×H25mm

External dimensions（W×D×H mm）: W442×D380×H160mm

Power Source: AC115V/AC220V

Single-phase with step-down transformer

Weight: 7.8 kg

Datasheet
