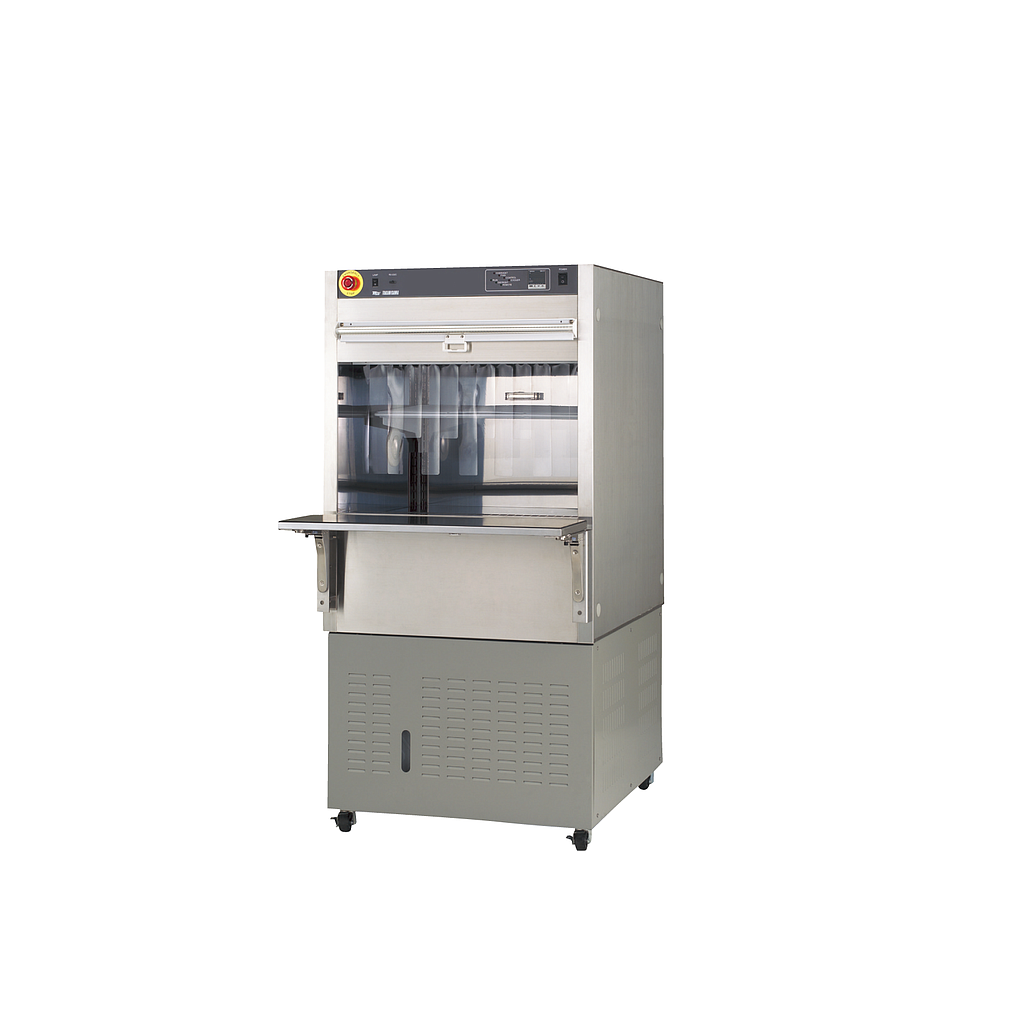

Yamato OTC-213A 开口烘干箱 (134L, 1.4kW)

Type: Air curtain type (2 layers) (double stream)

Setting temp. range: -15 to +60°C (without econo-cover)

Time to reach: Approx. within 30min. from +25 to -15°C

Time to reach: Approx. within 20min. from +25 to +60°C

Temperature control: PID control by microcomputer

Temperature sensor: Pt resistance thermometer

External interface: RS232C (Communication function such as temp. setting, Run / Stop, Temp. monitor)

Refrigerator/Coolant: Scroll compressor/R404A, 750kW

Heater capacity: 1.4kW

Cable hole: I.D. 60mm

Accessories: N/A

Internal dimensions（W×D×H mm）: 670×500×400mm

External dimensions（W×D×H mm）: 750×880×1500mm

Remarks(dimensions): 134L

Power Source: AC220V / AC380V Three-phase with step down transformer

Weight: 180kg
