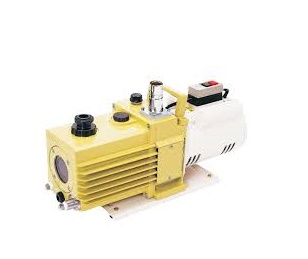

Yamato PX-137 Vacuum Pump (1000mL, 135l/min)

Effective exhaust speed (50 Hz): 135l/min

Effective exhaust speed (60 Hz): 162l/min

Attainable vacuum (Pa): 0.67 Pa

Motor: Single phase,100V,400W,4P

Oil amount (mL): 1000mL

Oil type: SO-M

Suction pipe diameter (mm): O.D.30×I.D.22 mm

Operating atmospheric temp. range (deg.C): 7 to 40℃

External dimensions(W×D×H mm): 170×493×263mm

Power Source: AC115V /AC 220V Single phase with step down transformer

Weight: 25.4kg
