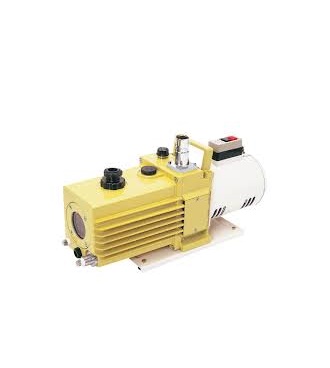

Yamato PX-202 Vacuum Pump (1100mL, 200l/min)

Effective exhaust speed (50 Hz): 200l/min

Effective exhaust speed (60 Hz): 240l/min

Attainable vacuum (Pa): 0.67 Pa

Motor: Three phase,200V,700W,4P

Oil amount (mL): 1100mL

Oil type: SO-M

Suction pipe diameter (mm): O.D.30×I.D.22 mm

Operating atmospheric temp. range (deg.C): 7 to 40℃

External dimensions(W×D×H mm): 170×510×263mm

Power Source: AC220V/AC380V Three phase with step down transformer

Weight: 26.6kg

Details

Datasheet
